Depiction of the Cranial Nerves Within the Brain Stem with Use of PROPELLER Multishot Diffusion-Weighted Imaging

Technique

We enrolled 8 healthy volunteers: 5 men and 3 women; mean age, 33.6 ± 9.3 years. We explained the purpose of the MR study to the volunteers and obtained their prior consent.

We performed the MR study in all subjects by using a 1.5T superconducting system (Signa Excite; GE Healthcare, Milwaukee, Wis) and an 8-channel neurovascular phased-array coil. We obtained PROPELLER multishot diffusion-weighted imaging sequences by applying motion-probing gradients (MPG) in 3 orthogonal directions for each section and using fast spin-echo imaging. We obtained 3-orthogonal-axis images (superior-inferior [SI], right-left [RL], anterior-posterior [AP]) as well as isotropic diffusion-weighted images that were generated by averaging the images in the 3 axes. We also obtained short-τ inversion recovery (STIR) images, which provided good contrast between gray and white matter.⁸ The scan range was from the medulla oblongata to the midbrain.

The parameters for fast spin-echo PROPELLER multishot diffusion-weighted imaging were as follows: matrix size, 192 × 192; TR, 6000 ms; TE, 130.9 ms; echo-train length, 24; blade number, 32; band width, 62.5 KHz; b-factor, 850 seconds/mm²; NEX, 4; section thickness, 3 mm; section gap, 0.5 mm; FOV, 24 × 24 cm; 15 section sections; total imaging time, 12 minutes 54 seconds. The parameters for STIR imaging were as follows: matrix size, 512 × 256; TR, 5500 ms; TE, 25.9 ms; TI, 150 ms; NEX, 2; section thickness, 3 mm; section gap, 0.5 mm; 15 section sections; imaging time, 4 minutes 30 seconds.

These images were evaluated at random by 2 observers (M.A. and E.K), who arrived at their conclusions by mutual consent. They focused on linear high-intensity components in the brain stem.

Results

Diffusion-weighted images with MPG applied in the SI direction depicted 3 (18.8%) of 16 oculomotor nerves (Fig 1), 11 (68.8%) trigeminal nerves (Fig 2), and 7 (43.8%) vestibulocochlear nerves (Fig 3) as high-intensity linear areas. Diffusion-weighted images with MPG applied in the AP direction depicted only 2 (12.5%) vestibulocochlear nerves; however, on these images with MPG applied in the AP direction, the vestibulocochlear nerves were depicted unclearly in the tegmentum of the pons, which displayed high signal intensity. No cranial nerves were depicted in the brain stem on diffusion-weighted images with MPG applied in the RL direction or on STIR images. In addition, we could not identify any nucleus in the tegmentum of the brain stem on diffusion-weighted or on STIR images.

• Download figure
• Open in new tab
• Download powerpoint

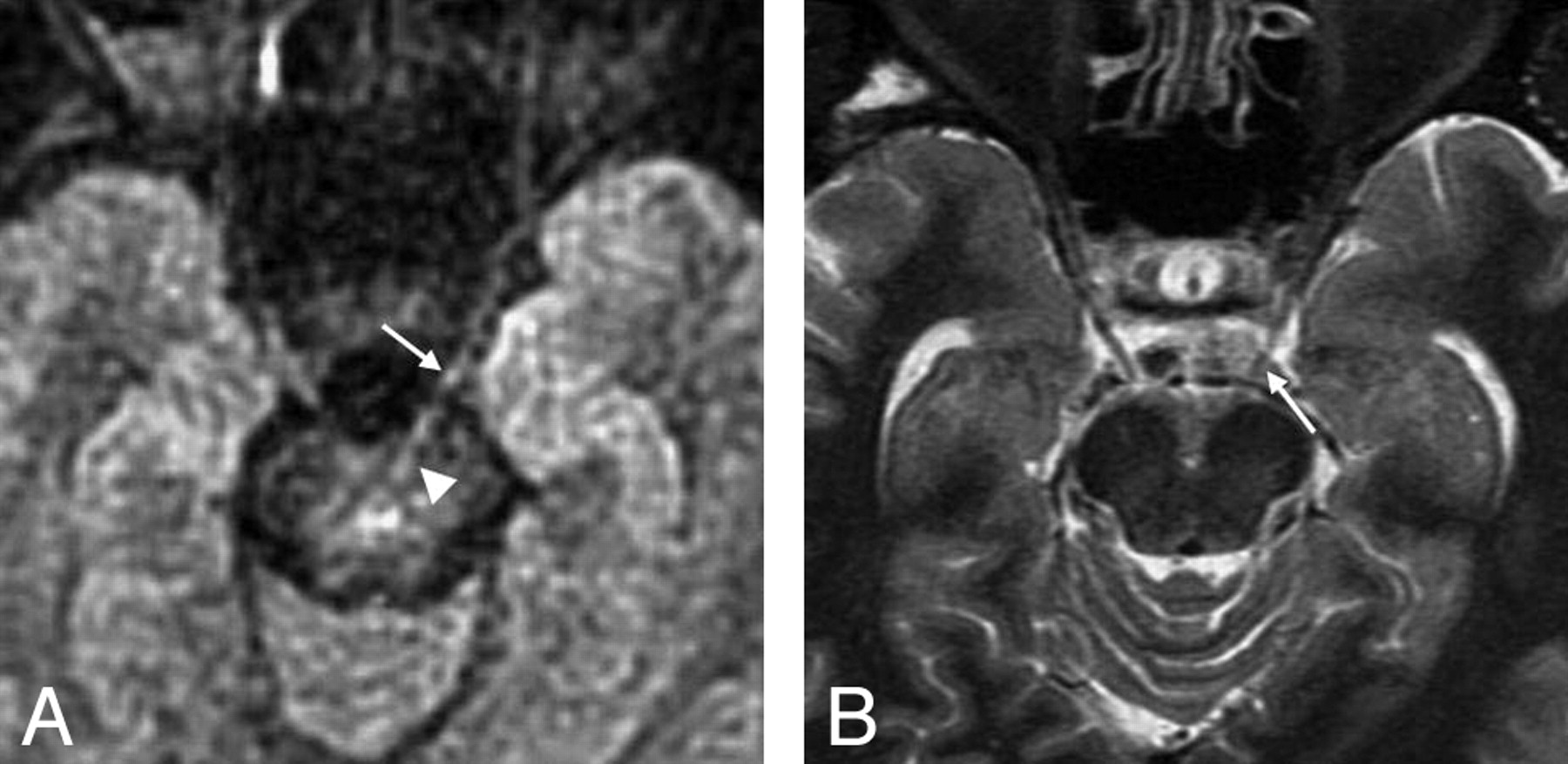

Fig 1.

Images of a 44-year-old male volunteer. A, Multishot diffusion-weighted image with MPG applied in the SI direction shows the left ophthalmic nerve not only in the cistern (arrow) but also in the midbrain (arrowhead). The bright signals in the center of the midbrain are considered to be the decussation of the superior cerebellar peduncle running in the lateral direction. B, STIR image shows the cisternal portion of the left ophthalmic nerve (arrow); however, the nerve is not identified in the midbrain.

• Download figure
• Open in new tab
• Download powerpoint

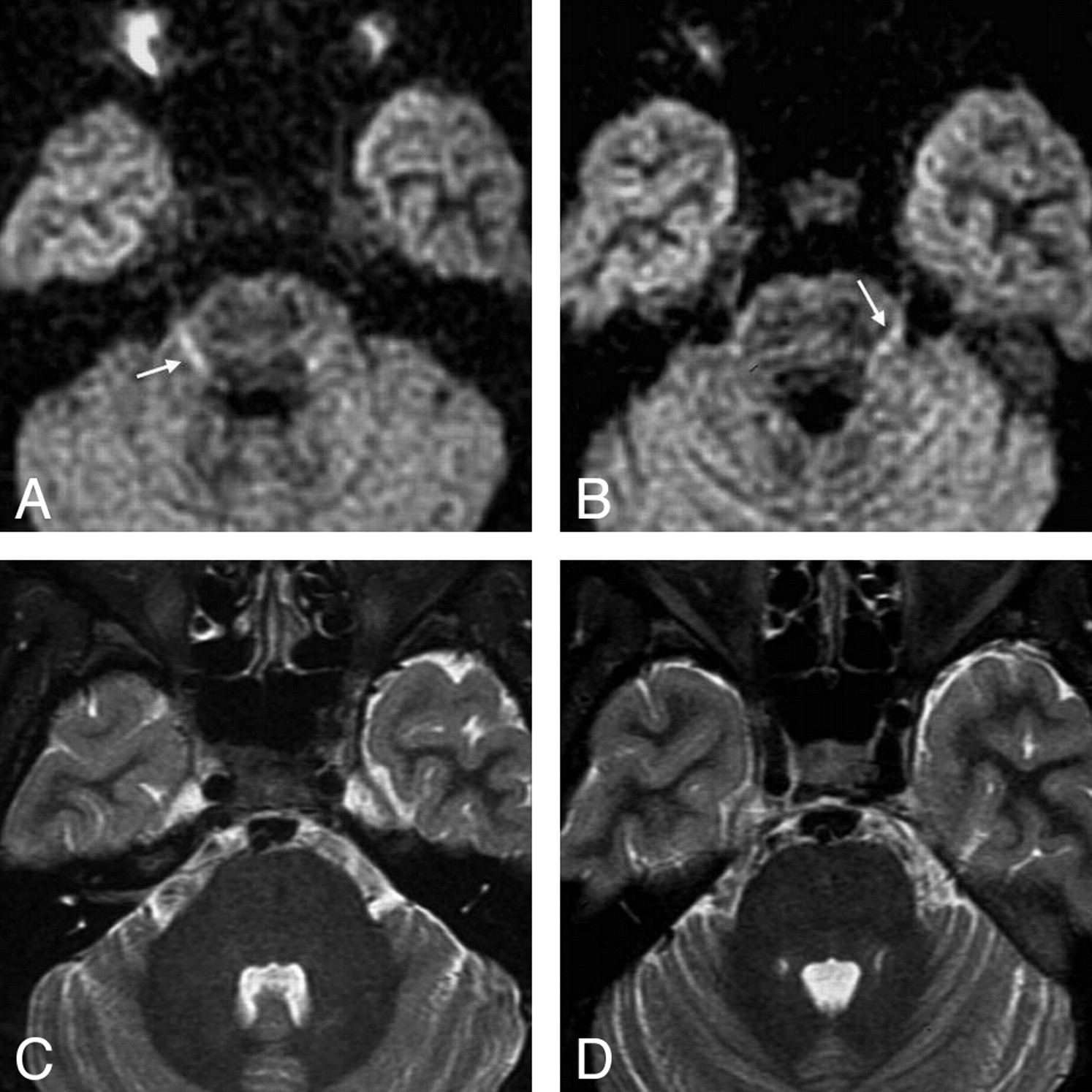

Fig 2.

Images of a 30-year-old female volunteer. A,B, Multishot diffusion-weighted images with MPG applied in the SI direction show both trigeminal nerves as slightly curved high-intensity lines in the mid-pons (arrows). C,D, The trigeminal nerves are not identified in the mid-pons on the STIR images.

• Download figure
• Open in new tab
• Download powerpoint

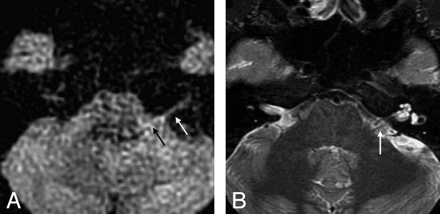

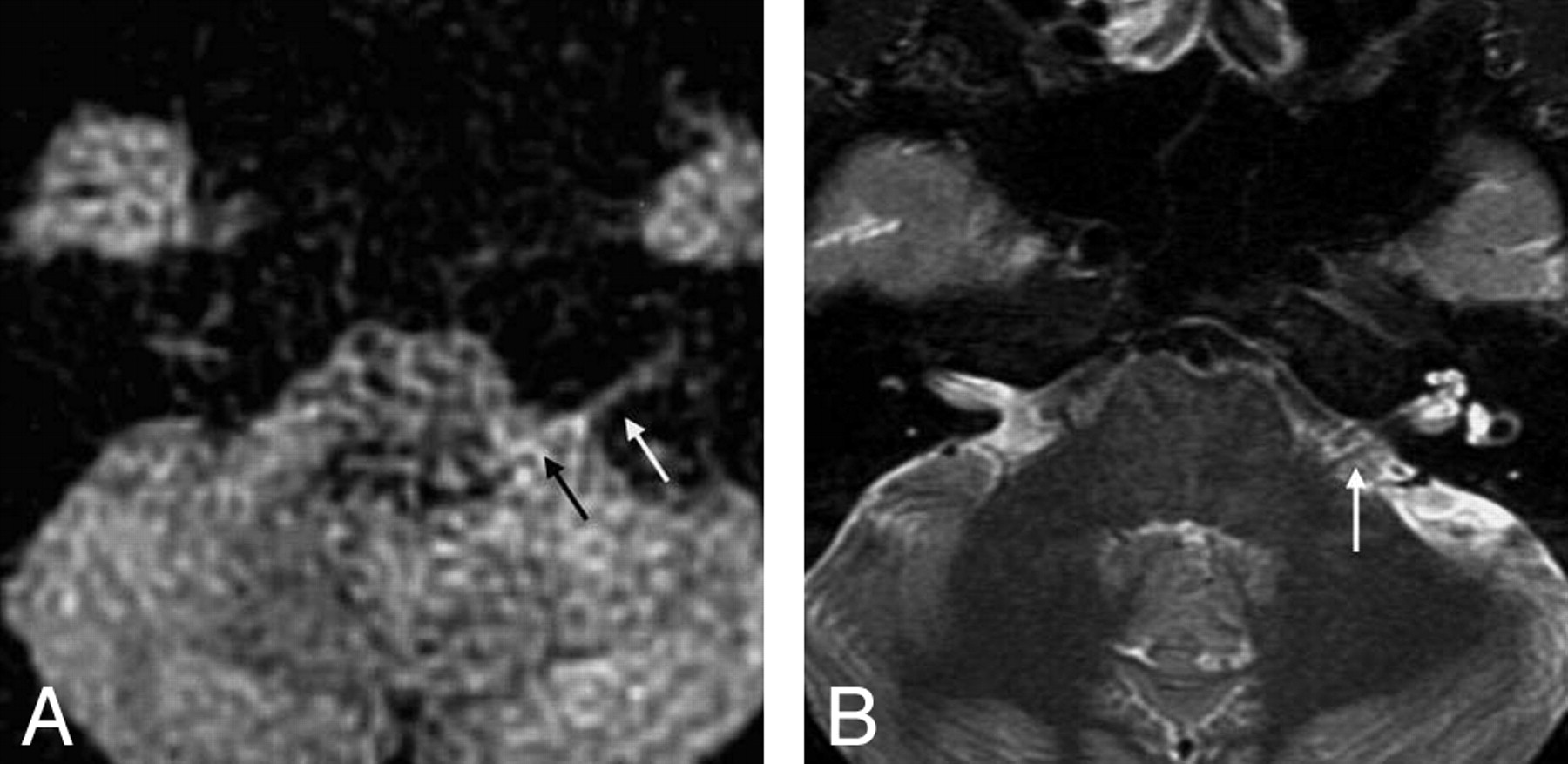

Fig 3.

Images of a 34-year-old male volunteer. A, Multishot diffusion-weighted image with MPG applied in the SI direction shows the left acoustic nerve as a linear high-intensity line in the brain stem (black arrow) as well as in the cistern (white arrow). B, STIR image shows the left acoustic nerve in the cerebellar-pontine cistern (arrow); however, it is not identified in the brain stem.

Discussion

PROPELLER, developed by Pipe et al^6,7, is a radial data sampling method in which k-space is composed in blades, including some rectilinear samplings. This is an effective method for compensating for motion and distortion and offers high-quality multishot diffusion-weighted images without distortion or phase artifact.

We attempted to depict cranial nerves within the brain stem using PROPELLER multishot diffusion-weighted imaging. Visualization of the oculomotor, trigeminal, and vestibulocochlear nerves was achieved in some subjects as linear high-signal intensities on PROPELLER with MPG applied in the SI direction.

Nerve fiber bundles parallel to the direction of the MPG are depicted as low intensities, whereas those perpendicular to the direction of the MPG are depicted as high intensities on diffusion-weighted images because of their anisotropic water diffusion.⁹ From an anatomic standpoint, the cranial nerves originate from the tegmentum and run in an antero-oblique direction. The images with MPG applied in the SI direction are the most perpendicular to the cranial nerve fibers within the brain stem, among those with MPG in 3 directions. In contrast, the white matter components surrounding the cranial nerves (the superior cerebellar peduncle, longitudinal pontine fasciculi, medial longitudinal fasciculus, central tegmental tract, and reticular formation) run almost parallel to the SI direction. The decussation of the superior cerebellar peduncle, the transverse pontine fiber bundles, and the middle cerebellar peduncle then run in a lateral oblique direction. Therefore, diffusion-weighted images with MPG applied in the SI direction should provide good contrast between the cranial nerves and the surrounding white matter.

Numerous recent articles have addressed diffusion tensor imaging and white matter tractography.^10–13 These reports have established that white matter tractography can reconstruct the major white matter structures, for example, the corticospinal tract. However, no studies have demonstrated the cranial nerves within the brain stem, even with use of the 3T superconducting systems that are now available. Therefore, PROPELLER multishot diffusion-weighted imaging is thought to be a valuable tool in revealing anatomic details of the cranial nerves and determining the relationship between the cranial nerves and lesions such as tumors, hematomas, and infarcts.

Although we attempted to depict cranial nerve fibers using 5-to-7-mm-thick images, there was insufficient contrast to discriminate the nerves from the surrounding white matter. We consider that thin-section images, at least 3 mm thick, would be required to depict cranial nerves. However, the signal-to-noise ratio of 3-mm-thick images is worse than that of 5-to-7-mm-thick images, and the quality is currently insufficient to enable evaluation of the cranial nerves in the clinical setting. It would be of great value in future studies to improve the signal-to-noise ratio with use of high-T superconducting system.

Conclusion

We succeeded in depicting the cranial nerves within the brain stem in some subjects using PROPELLER multishot diffusion-weighted imaging with MPG applied in the SI direction. However, the ratio of visualization was insufficient for use in the clinical setting. Improvement in the signal-to-noise ratio remains an issue for future study.
