Abstract
BACKGROUND AND PURPOSE: Psychiatric symptoms occur in approximately 30% of patients with MS. Such symptoms include OCD, which may interfere heavily with the patient's daily life. We hypothesized that the widespread involvement of both GM and WM, which characterizes MS, may be responsible for the occurrence of OCD when specific brain structures are affected. The aim of this study was to evaluate the relationship between GM and WM tissue damage and OCD in patients with MS.
MATERIALS AND METHODS: We evaluated 16 patients with relapsing-remitting MS who had been diagnosed with OCD on the basis of the Diagnostic and Statistical Manual of Mental Disorders (4th edition) and 15 age- and sex-matched patients with relapsing-remitting MS with no psychiatric disorders as a CG. The MR study (1.5T) included 3D T1-weighted fast-field echo sequences, DTI (32 directions), and conventional MRI. Images were processed using SPM5, FSL, and Jim 5.0 software to evaluate VBM, TBSS, and global and regional LV, respectively.
RESULTS: The VBM analysis revealed a set of clusters of reduced GM volume in the OCD group, compared with the CG, located in the right inferior and middle temporal gyri and in the inferior frontal gyrus. TBSS did not detect any differences in the FA values between the 2 groups; global and regional LV values also did not differ significantly between the 2 groups.
CONCLUSIONS: Our study suggests that OCD in MS may be caused by damage in the right frontotemporal cortex.
ABBREVIATIONS:
- CG
- control group
- EDSS
- Expanded Disability Status Scale
- FA
- fractional anisotropy
- GM
- gray matter
- LV
- T2 lesion volume
- OCD
- obsessive-compulsive disorder
- TBSS
- tract-based spatial statistics
- VBM
- voxel-based morphometry
- Y-BOCS
- Yale-Brown Obsessive Compulsive Scales
MS is the most common chronic inflammatory and degenerative disease of the central nervous system. Besides neurologic signs and symptoms, MS may be associated with various psychiatric manifestations such as depression, anxiety, euphoria, emotional lability, mania, and psychosis.1⇓–3 It has been estimated that approximately 30% of patients with MS experience psychiatric disorders during the disease course.1 Investigations of psychiatric disturbances in MS have usually focused on depression and anxiety3 or psychosis.4 The lifetime rate of anxiety disorders in the MS population was reported by the National Comorbidity Survey as 25%.5 More recently, Korostil and Feinstein6 found that 35.7% of their sample of 140 patients with MS had an anxiety disorder at some time during their lifetime, attributable to one of the following 3 disorders: generalized anxiety disorder, OCD, and panic disorder. In particular, the lifetime prevalence of OCD in MS was 8.6% compared with 2.5% in the general population.6
OCD is characterized by distressing repetitive thoughts, impulses, or images that are intense, frightening, absurd, or unusual. These thoughts are followed by ritualized actions that are usually bizarre and irrational. These ritual actions, known as compulsions, help reduce anxiety caused by one's obsessive thoughts. Often described as the “disease of doubt,” the sufferer usually knows the obsessive thoughts and compulsions are irrational but, on another level, fears they may be true. Therefore, OCD causes marked distress and may heavily interfere with daily life and social relationships.
In primary OCD (ie, not associated with other neurologic diseases), neuroimaging studies have revealed structural and/or functional abnormalities in specific brain structures, particularly in the fronto-striato-thalamic circuitry,7⇓–9 which points to an organic etiology of this psychiatric disease.
We hypothesized that the widespread involvement of both GM and WM, which characterizes MS, may be responsible for the occurrence of OCD when specific brain structures are affected. The aim of this study was to evaluate the relationship between GM and WM tissue damage and OCD in patients with MS.
Materials and Methods
Subjects
From a series of outpatients with relapsing-remitting MS diagnosed according to the McDonald criteria10,11 attending our Multiple Sclerosis Center, we selected 16 patients who had been diagnosed with OCD on the basis of the Diagnostic and Statistical Manual of Mental Disorders (4th edition).12 Written informed consent was obtained, after a description of the study, in line with the principles of the Declaration of Helsinki.
Inclusion criteria were age between 18 and 50 years, mild level of disability (ie, EDSS score below 3.5),13 and right-handedness. Exclusion criteria were any pre-existing history of obsessive-compulsive traits, tic disorder, or other OCD spectrum disorders; any first-degree relative with OCD; other concomitant neurologic or psychiatric diseases; cognitive impairment; a new relapse and/or systemic corticosteroid therapy in the 30 days before study entry; and major medical illnesses.
Fifteen patients with relapsing-remitting MS without any psychiatric disorders, satisfying the same inclusion and exclusion criteria and matched for age and clinical disability, were included as a CG.
All patients were on immunomodulatory therapy and underwent a neurologic evaluation, including administration of the EDSS, a psychiatric assessment, a cognitive assessment, and MR imaging.
Psychiatric Assessment
OCD diagnosis was based on the Diagnostic and Statistical Manual of Mental Disorders. The severity of the OCD was assessed by the means of the Y-BOCS.14 The Y-BOCS is a 10-item clinician-administered scale developed to assess the severity of obsessions and compulsions, regardless of the number and type of obsessions or compulsions present. Obsessions and compulsions are rated according to the amount of resistance to them, distress over them, control over them, interference from them, and time spent on them. The following total scores are considered as a severity index for OCD symptoms: 0–7 = subclinical; 8–15 = mild; 16–23 = moderate; 24–31 = severe; 32–40 = extreme.
All patients underwent a psychiatric interview to rule out any other psychiatric disorders. The Ham-D15 and Ham-A16 were used for rating depression and anxiety, respectively.
Cognitive Assessment
A battery of neuropsychologic tests was administered to each subject by a psychologist (E.M.Q.) who had more than 7 years of experience in neuropsychologic test design and measurement and who was blinded to the functional MR imaging results.
The neuropsychologic test battery included the Stroop Color Naming Test,17 Raven Progressive Matrices,18 Tower of London,19 Rey Complex Figure (copy and recall),20 Trail-Making Test A and B,21 Rey Auditory Verbal Learning,22 and Digit Span.23
MR Imaging Acquisition
MR images were acquired with a 1.5T magnet (Gyroscan NT 15; Philips Medical Systems, Best, the Netherlands). All patients were investigated during a single session with the following sequences: 1) an axial dual-echo fast spin-echo sequence on 48 contiguous 3-mm-thick sections (TR: 2150 ms, TE: 30/120 ms; echo-train length: 12; matrix: 256 × 256; field of view: 240 mm); 2) a 3D T1-weighted fast-field echo sequence on 150 contiguous axial 1-mm-thick sections (TR: 40 ms; TE: 4 ms; flip angle: 30°; matrix: 512 × 512; field of view: 240 mm); 3) a DTI with a single-shot echo-planar pulse sequence on 25 contiguous 5-mm-thick sections (TR: 3694 ms, TE: 95 ms; matrix: 128 × 128; field of view: 240 mm) with diffusion gradients applied along 32 noncollinear directions using 2 b-values (0 and 1000 seconds/mm2); and 4) an axial T1-weighted spin-echo sequence on 48 contiguous 3-mm-thick sections (TR: 600 ms, TE: 15 ms; matrix: 256 × 256; field of view: 240 mm) after injection of 0.2 mmol/kg of gadolinium-diethylene-triamine pentaacetic acid.
Image Analysis and Postprocessing
Image data processing was performed on a personal computer running Jim 5.0 software (Xinapse System, Leicester, England), SPM5 software (Wellcome Department of Cognitive Neurology, London, England), the FSL 4.0 software package (FMRIB Image Analysis Group, Oxford, England; http://www.fmrib.ox.ac.uk/fsl), and MATLAB 7.0 software (Mathworks, Natick, Massachusetts). We used Jim 5.0 for LV calculation, SPM5 for VBM analysis, and FSL for FA calculation and TBSS.
Lesion Volume
On conventional proton attenuation, the LV was calculated by Jim 5.0 software. The LV yielded the following data for every subject: a quantification of the lesion burden and a binary lesion mask needed for further image processing (both VBM and TBSS). Lesion masks were then transformed into standard space and averaged to yield a mean lesion mask across subjects. We also calculated a regional LV in the frontal and temporal lobes of each cerebral hemisphere on the basis of anatomic landmarks.24
Voxel-Based Morphometry
3D T1 images underwent automated segmentation to create GM, WM, and CSF images. The VBM protocol, which consisted of an iterative combination of segmentations and normalizations, yielded a GM probability map.
Normalized GM images were modulated, that is, multiplied by the local value derived from the deformation field, thereby preserving within-voxel volumes that might have been altered during nonlinear normalization. For all subjects, lesion masks were used to remove lesional tissue incorrectly classified as GM from the output of segmentation. GM, WM, and CSF volumes were recorded and used to calculate the intracranial volume as GM + WM + CSF. The brain parenchymal fraction was calculated as follows: (GM + WM)/intracranial volume.
Data were smoothed using a 12-mm full width at half maximum Gaussian kernel. The processed images of GM in MS OCD and MS CG were compared through voxelwise comparisons.
Based on an a priori hypothesis, we restricted VBM analysis to voxels included in a mask, which was constructed on the automated anatomic labeling map,24 using MRIcro 1.38 software (http://www.sph.sc.edu/comd/rorden/mricro.html), by selecting regions found to be affected in primary OCD in previous studies; that is, the middle and inferior frontal gyri, orbitofrontal cortex, anterior cingulum, thalamus, basal ganglia, temporal pole, and superior, middle, and inferior temporal gyri and insula, bilaterally.25⇓⇓–28 To calculate regional GM volume differences between MS OCD and MS CG, we used a 2-sample t test in SPM5, entering age, EDSS, LV and disease duration as nuisance variables. Statistical threshold was set at P < .05, false discovery rate corrected at the voxel level.
TBSS and Mean FA
DTI data were first corrected for eddy currents and involuntary motion using affine registration29; the diffusion tensor was estimated by multivariate linear regression, and FA maps were calculated. FA images were analyzed using TBSS, an FSL tool.30 This involves realigning all images to a common template, creating a “skeleton” by computing and thinning the mean FA image, and projecting each subject's FA onto the skeleton. These data were then fed into a voxelwise cross-subject statistical analysis, which, in our study, was performed to identify differences in the FA areas between groups of patients. TBSS was restricted to the normal-appearing white matter by excluding from the analysis all voxels in which at least 10% of the patient population had a lesion (based on the mean T2 lesion mask). We performed the voxelwise analysis using an unpaired t test with a permutation-based inference (2000 permutations) corrected for multiple comparisons, with a significance level of P < .05. The mean FA was also calculated for each subject.
Results
There were no significant differences in demographic and clinical variables (age, sex, EDSS, disease duration, educational level) between patients with MS who developed OCD and patients with MS who did not (Table 1).
Demographic and clinical data in 16 patients with MS with OCD and in 15 patients with MS without psychiatric disorders (CG)
The mean Y-BOCS score in the OCD group was 26.13 ± 6.4. OCD severity was moderate in 6 patients, severe in 5, and extreme in the remaining 5. No patient exhibited symptoms of anxiety or depression. No significant differences in either Ham-D (OCD = 8.6 ± 3.1; CG = 6.9 ± 2.6) or in Ham-A (OCD = 11.2 ± 2.8; CG = 9.8 ± 2.9) were found between groups.
The cognitive evaluation excluded the presence of cognitive impairment in patients in both groups and any significant difference in cognitive performance between the MS OCD group and the MS CG (Table 2).
Neuropsychologic evaluation in 16 patients with MS with OCD and in 15 patients with MS without psychiatric disorders (CG)
Lesion Volume
Regional and global LVs are shown in Table 3. Although LV values were higher in patients with MS and OCD than in patients with MS without psychiatric disorders, there were no significant differences in either the global or regional LVs between the 2 groups. Moreover, the lesion distribution between the frontal and temporal lobes and between the right and the left hemispheres was comparable in the 2 groups.
Regional and global LV values in 16 patients with MS with OCD and in 15 patients with MS without psychiatric disorders (CG)
Voxel-Based Morphometry
The global GM volume was slightly, though not significantly, lower in the OCD group than in the control group (530.2 ± 70.6 versus 578.8 ± 68.5). The global GM volume was not correlated with the Y-BOCS scores.
The VBM analysis revealed a set of clusters of reduced GM volume in patients with OCD that was located in the right inferior frontal gyrus (Z = 2.71; coordinates: 48, 14, −30), inferior temporal gyrus (Z = 3.30, coordinates: 50, −24, −28), and middle temporal gyrus (Z = 2.90, coordinates: 54, −4, −26) (2-sample t test, P < .05, false discovery rate corrected at the voxel level) (Fig 1). No brain area showed greater GM volume in the MS OCD group than in the MS CG.

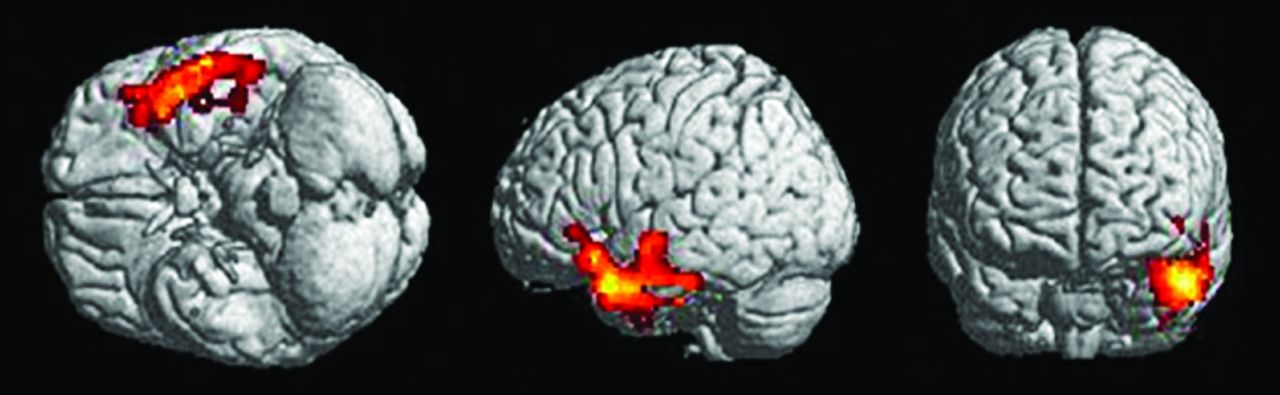

Images show focal decrease in GM volume in 16 patients with MS and OCD compared with 15 patients with MS without psychiatric disorders (CG). Clusters of decreased GM volume (red/yellow) are overlapped with a rendered brain. Clusters that are significant at P < .05 (2-sample t test; false discovery rate corrected) are observed in the right inferior frontal gyrus (Z = 2.71; coordinates: 48, 14, −30), inferior temporal gyrus (Z = 3.30, coordinates: 50, −24, −28) and middle temporal gyrus (Z = 2.90, coordinates: 54, −4, −26).
TBSS and Mean FA
There was no significant difference between the 2 patient groups in the mean FA values (FA in OCD: 0.43 ± 0.03; FA in CG: 0.45 ± 0.02). Voxelwise analysis by TBSS did not reveal any area of significant between-group difference in FA in normal-appearing WM. The correlation between the FA and Y-BOCS scores in the OCD group was not statistically significant.
Discussion
When we compared patients with MS and OCD and those without psychiatric disorders, we found a significant reduction in GM volume in the frontotemporal cortex in patients with OCD, affecting in particular the inferior frontal gyrus and the inferior and middle temporal gyri on the right side.
As the neurobiologic mechanisms underlying psychiatric symptoms in MS have seldom been investigated, these remain obscure. Although neuroimaging techniques have been repeatedly used to investigate primary OCD,7⇓–9,31,32 no neuroimaging study has systematically addressed the occurrence of OCD during the course of MS. In a single case, the development of obsessive-compulsive symptoms after the diagnosis of MS was found to be associated with the emergence of a right parietal white matter multiple sclerosis plaque.33
In primary OCD, morphometric alterations have been consistently found not only in the frontal lobe (dorsolateral, orbitofrontal, and anterior cingulate cortices) and the basal ganglia34,35 but also in the supramarginal gyrus,36 anterior superior temporal cortex,25 hippocampus, and amygdala.31
Some evidence of the role of the temporal lobe in the pathophysiology of OCD has been yielded by studies on OCD associated with neurologic disorders, particularly with epilepsy. The fact that obsessive-compulsive symptoms may be present in over 20% of patients with drug-resistant temporal lobe epilepsy suggests that temporal lobe epilepsy and OCD may share some neuroanatomic circuit dysfunctions.37,38 Obsessive-compulsive symptoms may be more severe in patients with right-sided epilepsy than in those with left-sided epilepsy.37,39 OCD may also occur after temporal lobe resection performed as treatment for drug-resistant epilepsy.40,41
Secondary obsessive-compulsive symptoms have also been reported after encephalitis or traumatic brain injury42,43; decreased blood flow in the temporal lobes, as well as cortical perfusion abnormalities in the frontal lobes, have been described in OCD, acquired as a result of various neurologic conditions.44
Apart from the focal volume decrease in the right frontotemporal cortex detected in the patients with MS and OCD, we did not find any other abnormalities in the global or regional FA, which is an index of white matter tract integrity, nor did we observe more macroscopic white matter lesions in the right hemisphere. This finding is in contrast to the results of recent DTI studies in primary OCD, which have reported abnormalities in the corpus callosum and subcortical frontal white matter associated with either increased32 or decreased45 structural connectivity. Differences in patient characteristics and/or in methods of MR acquisition and data analysis could account for this discrepancy.
Conclusions
Our study indicates that OCD associated with MS has an anatomic substrate and may be related to damage in the right frontotemporal cortex. Further studies are warranted to shed light on the mechanisms underlying the association between frontotemporal damage and the development of OCD in MS, and to investigate whether there is a cause-effect relationship between these.
Footnotes
Disclosures: Carlo Pozzilli—UNRELATED: Board Membership: Advisory Board for Merck Serono, Biogen, Sanofi Aventis, Teva, Bayer; Grants/Grants Pending: Merck Serono,* Biogen,* Bayer;* Payment for Lectures (including service on speakers bureaus): Biogen, Merck Serono, Bayer, Sanofi Aventis, Novartis, Teva; Payment for Manuscript Preparation: Bayer; Payment for Development of Educational Presentations: Serono Symposia; Travel/Accommodations/Meeting Expenses Unrelated to Activities Listed: Biogen, Bayer, Novartis, Merck Serono, Teva, Sanofi Aventis. (*Money paid to institution)
This work was supported in part by a grant from the Federazione Italiana Sclerosi Multipla (FISM) 2010/R/26.
