Simple Fluoroscopy-Guided Transforaminal Lumbar Puncture: Safety and Effectiveness of a Coaxial Curved-Needle Technique in Patients with Spinal Muscular Atrophy and Complex Spines

Technique

Procedural Technique

A coaxial technique with an inner curved needle was previously described for access to the L5–S1 disk for diskography,⁶ and we used a similar technique for access to the target neural foramen using a Pakter Curved Needle Set (Fig 1; Cook Medical, Bloomington, Indiana). For aiming of the introducer needle, the B-plane fluoroscopy arm (fluoroscopy plane parallel to the floor) was initially positioned in a posteroloateral oblique projection along the long axis of the pedicle inferior to the target neural foramen (approximately 15°–20° lateral from posteroanterior) (Fig 2A). For depth control, the A-plane fluoroscopy arm (fluoroscopy plane perpendicular to the floor) was positioned in a standard lateral projection, with attention paid to precise superimposition of the bilateral neural foramina at the target level (Fig 2C).

• Download figure
• Open in new tab
• Download powerpoint

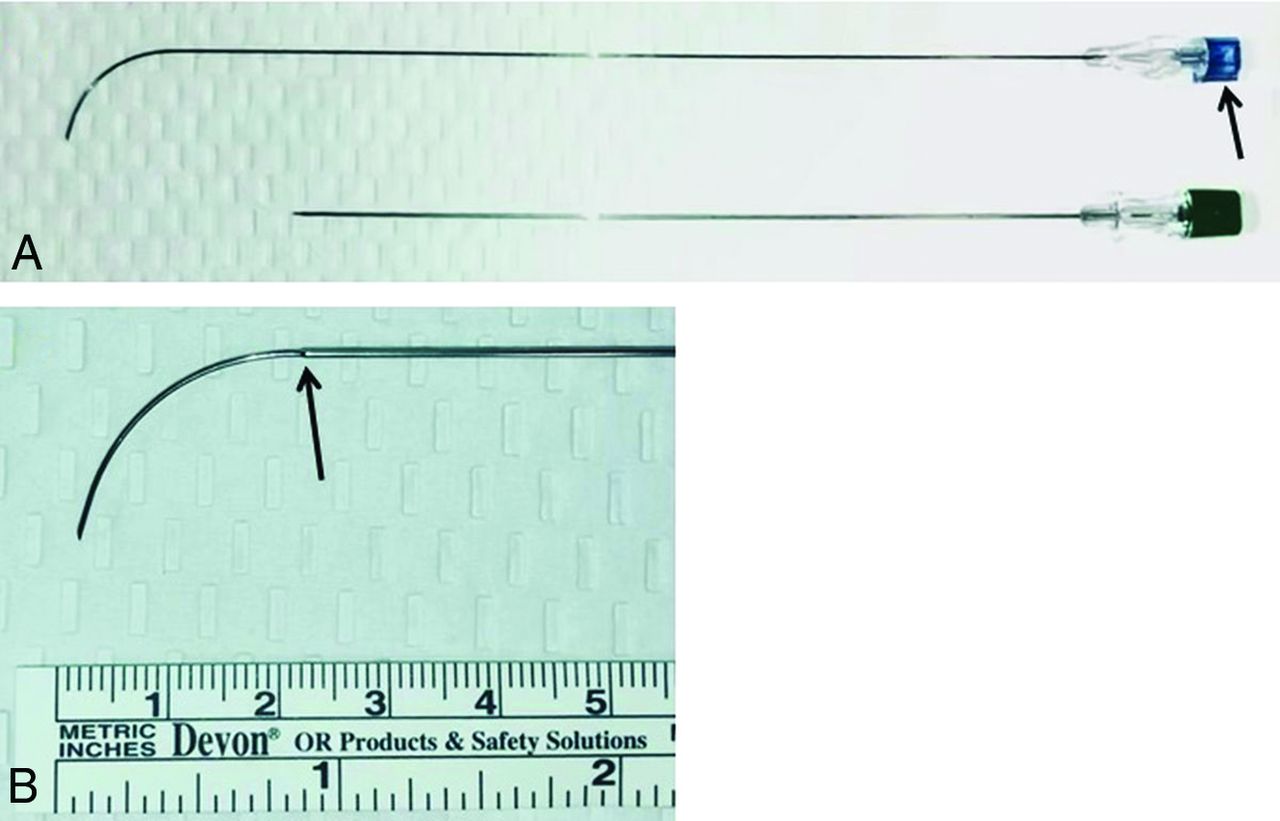

Fig 1.

The Pakter Curved Needle Set. A, Unmagnified view of the outer 15-cm 21-ga introducer needle (bottom) and inner 20-cm 25-ga curved needle (top). The notch on the inner needle indicates the direction that the needle will curve as it exits the introducer needle (arrow). B, Magnified view of the curved inner needle exiting the introducer needle (arrow indicates introducer needle tip).

• Download figure
• Open in new tab
• Download powerpoint

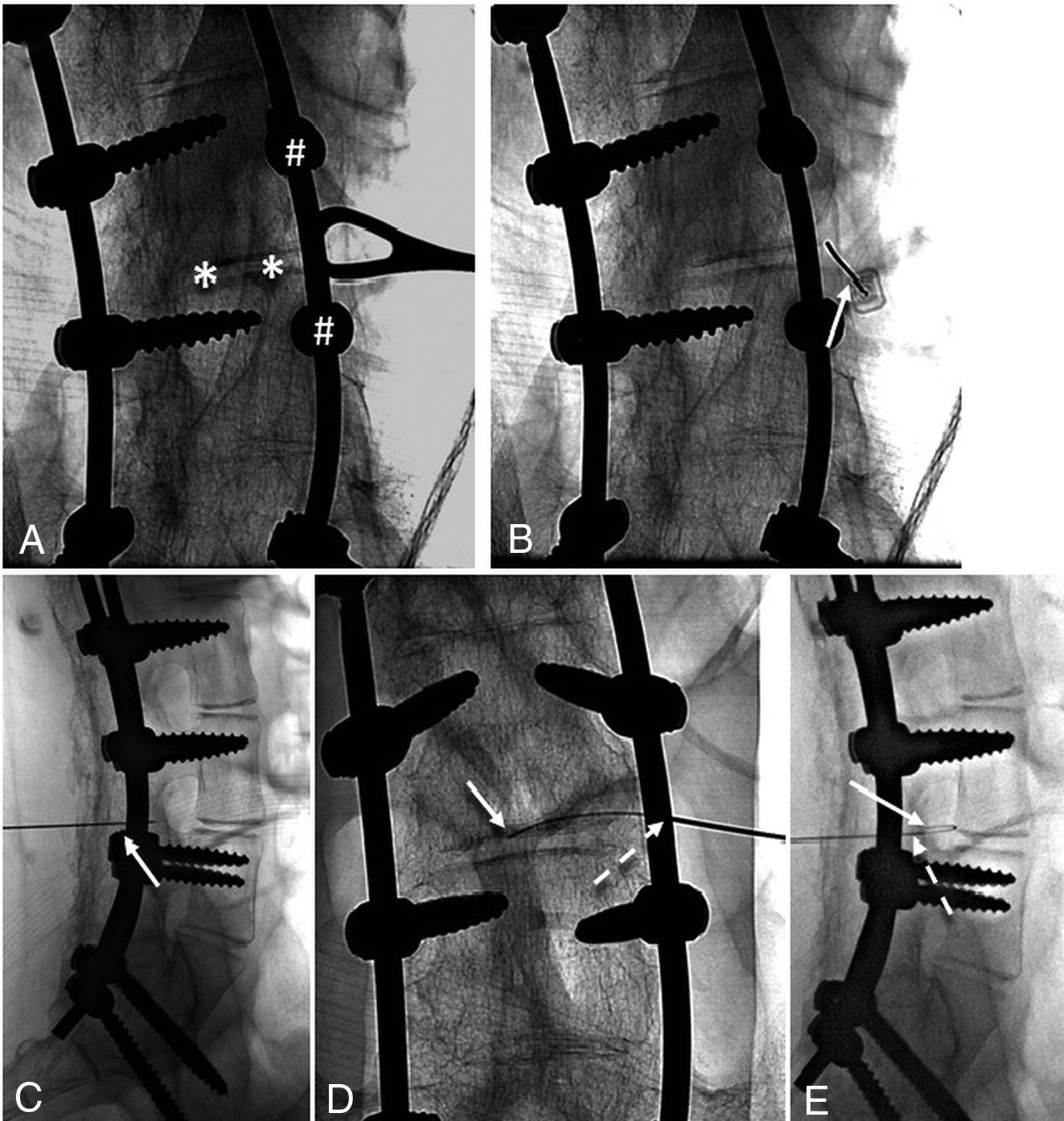

Fig 2.

Spot radiographs demonstrating steps in TFLP using the curved Pakter needle. A, posterolateral oblique view along the long axis of the pedicle. A ring forceps indicates the skin entry site at the level of the disk (asterisks), just lateral to the pedicles (hashtags). B and C, posterolateral oblique and lateral views show the correct position of the outer guiding needle terminating just lateral to the posterior margin of the target neural foramen and projecting over the lateral disk margin on the posterolateral oblique view (arrow). D and E, posteroanterior and lateral views show the correct position of the outer needle (dashed arrow) and the inner curved needle (solid arrow), having passed through the target neural foramen and terminating within the thecal sac at L3–4.

Using the posterolateral oblique view, we marked the skin overlying the target site at the lateral aspect of the disk corresponding to the target neural foramen (Fig 2A). Next, the introducer needle was advanced with biplane fluoroscopic control from the skin-entry site toward the target site at the lateral disk margin (Fig 2B) until the needle tip depth reached the posterior margin of the target neural foramen on the lateral projection (Fig 2C). This was the final position of the introducer needle.

For medial aiming and depth control of the coaxial 25-ga curved needle, the B-plane fluoroscopic arm was adjusted from posterolateral oblique to true posteroanterior; the A-plane remained in the lateral projection. The coaxial 25-ga curved Pakter needle was then directed medially and passed through the introducer needle until both were tip-to-tip. Under live biplane fluoroscopic control, the curved needle was then advanced through the inferior neural foramen to the midline, puncturing the thecal sac (Figs 2D, -E); the puncture was confirmed by return of CSF. Five milliliters of CSF was removed, and 12 mg of nusinersen in 5- mL total volume was delivered intrathecally during 1–3 minutes.

Safety

The only noteworthy complication encountered (1.6%) was a post–dural puncture headache requiring a therapeutic transforaminal epidural blood patch. This is similar to the reported rate of blood patch both in this patient population⁷ and in a patient population⁸ without SMA via the standard interlaminar approach. Two minor complications (3.2%) also occurred, consisting of puncture of a dorsal branch of the lumbar artery during placement of the outer 21-ga needle. Branches of the lumbar artery are typically located superiorly within the neural foramen,^9,10 but in both of our cases of arterial puncture, the needle tip was at the level of the mid-posterior foramen on the lateral view and approximately 1 cm lateral to the pedicle on the posteroanterior view (Fig 3). Although neither patient experienced an adverse event related to arterial puncture, serious hemorrhagic complications have been reported due to injury of the lumbar artery and its branches during percutaneous image-guided spine procedures, including vertebral body biopsy,¹¹ vertebroplasty,¹² and kyphoplasty¹³ and during transforaminal percutaneous endoscopic lumbar diskectomy.^10,14

• Download figure
• Open in new tab
• Download powerpoint

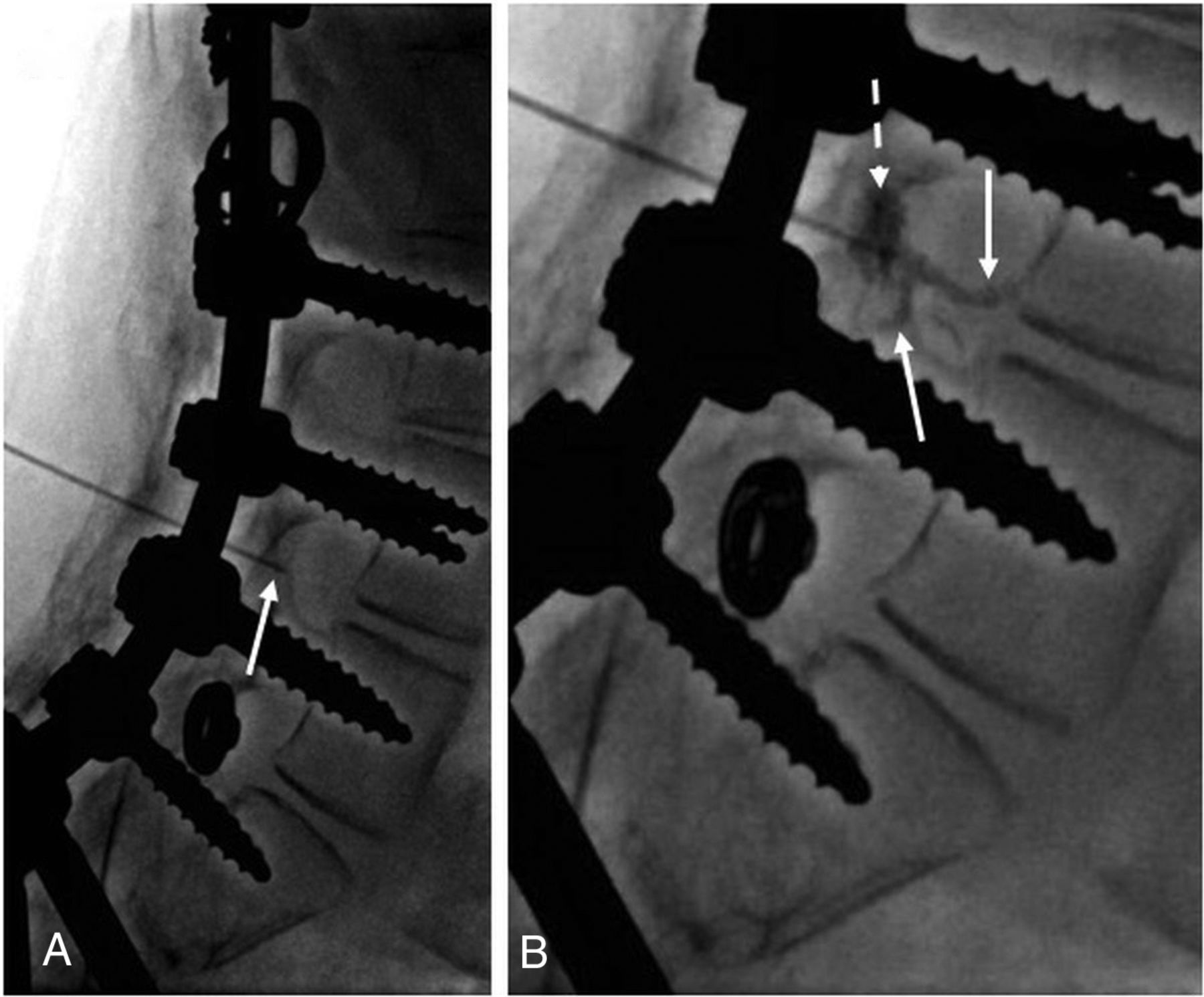

Fig 3.

Lateral fluoroscopic images during TFLP. A, Final position of the introducer needle (arrow). Blood return was noted at the needle hub after removal of the stylet. B, Injection of a small volume of iodinated contrast medium demonstrates opacification of a dorsal branch of the lumbar artery (solid arrows) and contrast collecting within the soft tissues (dashed arrow).

Given the potential for serious hemorrhagic complications, puncture of branches of the lumbar artery should clearly be avoided, and we now target the inferior neural foramen to avoid the dorsal branch. Although this complication has not been previously described related to TFLP, it should be kept in mind by all who perform TFLPs. Our technique differs from typical straight-needle techniques in that the stylet of the outer needle is removed when the needle tip is extraforaminal. Other straight-needle techniques likely involve removal of the stylet only when the needle tip is intrathecal; therefore, injury of an extraforaminal artery could go undetected. No patient in our cohort experienced persistent radicular symptoms.

The transforaminal approach has been used for epidural injections for decades, with increased use of this technique in recent years. More recently, the transforaminal approach has been described for intrathecal access, most commonly for administration of nusinersen.^15⇓⇓-18 Weaver et al¹⁸ used conebeam CT with fluoroscopic guidance overlay to perform TFLPs via a short, linear posterolateral approach in a similar patient population. In their description of their institutional protocol for intrathecal nusinersen administration in patients with SMA, Mousa et al¹⁶ also used a straight-needle TFLP technique when an interlaminar approach was deemed infeasible. In both of these studies, preprocedural lumbar spine CT was performed in all patients who had spinal hardware and osseous fusion, to assess possible interlaminar access and to determine a suitable target neural foramen if an interlaminar access was not possible. With a straight-needle transforaminal technique, cervical puncture may still be required in a small percentage of patients when retroperitoneal structures are in the expected path of the needle. With the curved-needle technique described here, retroperitoneal structures are widely avoided (Fig 4); therefore, preprocedural CT is not performed, and no cervical puncture has been necessary.

• Download figure
• Open in new tab
• Download powerpoint

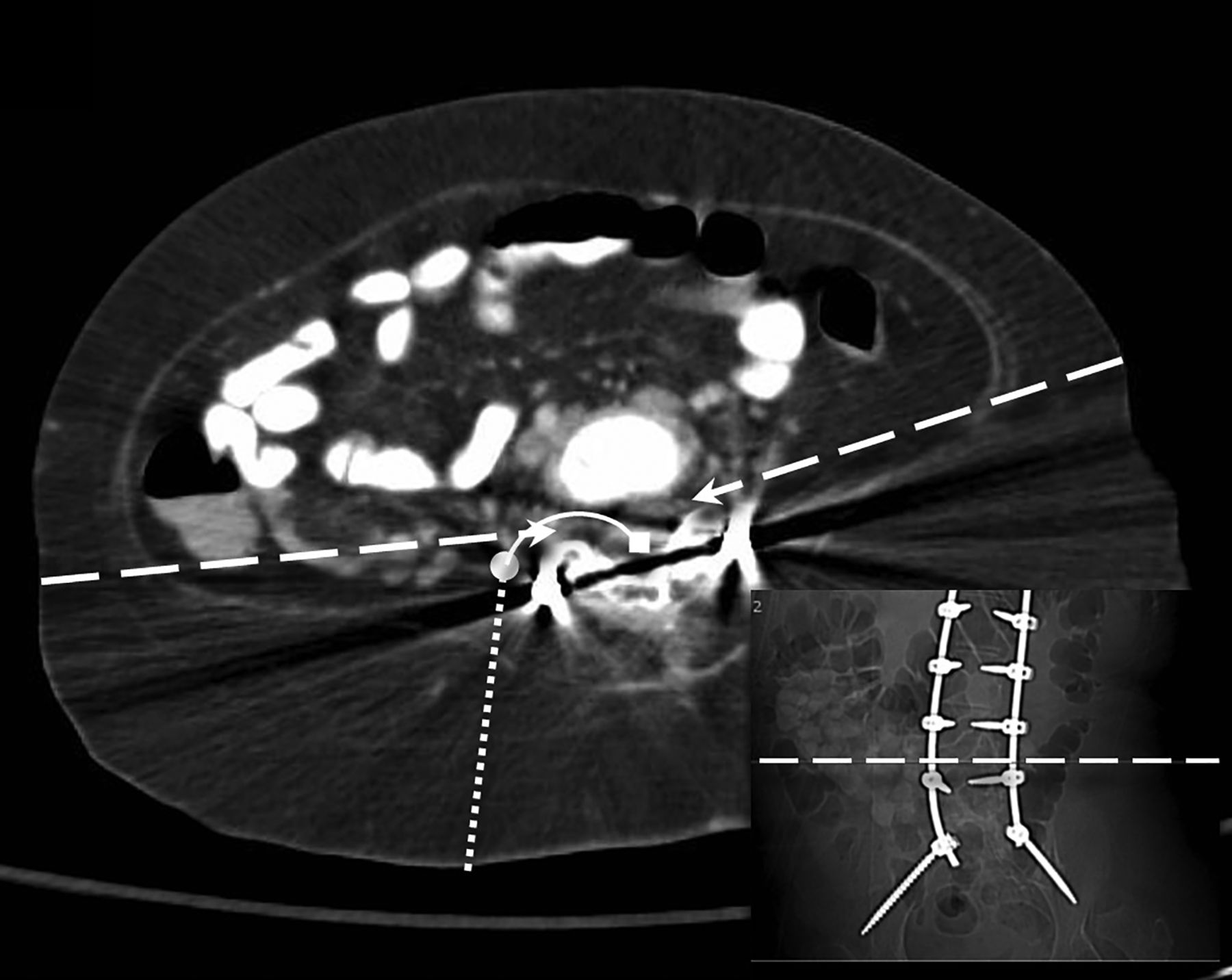

Fig 4.

Axial CT obtained in the same patient depicted in Figure 2 near the time of procedure but for an unrelated indication annotated to depict approximate trajectory and ending points of the outer guiding needle and curved inner needle using curved needle technique. Dotted line indicates guiding needle trajectory. Circle indicates guiding needle termination. Solid line indicates curved needle trajectory. Square indicates curved needle termination. Dashed arrows indicate hypothetical right and left straight needle trajectories at this level in this patient. Insert: corresponding AP scout image dashed line indicates plane of imaging.

Table 2 summarizes available publications using TFLP, which have provided radiation dose information in comparison with the current study. A conversion factor of 0.018 mSv/mGy × cm was used to calculate the effective dose for studies using CT guidance.^{15,17⇓⇓⇓-21} Radiation doses in the current study are similar to the lowest doses in published literature for TFLP. However, the total radiation dose in the current study is likely lower because we do not perform a planning CT, whereas most other authors either explicitly stated that planning CTs were performed¹⁸ or described planning CT being used in some cases while not explicitly stating whether this was routine practice.^15,17,21 The effective dose of a diagnostic lumbar spine CT is approximately 13 mSv.²² The mean effective dose for the 3 planning CTs in the present study was 12.5 mSv.

The multiplicity of recent publications and techniques indicates the ongoing challenges with intrathecal access in this patient population. The fluoroscopy-guided curve-needle transforaminal technique described here provides an attractive alternative for access. Potential benefits include the absence of a need for a surgical procedure, absence of the need for a planning CT, a low procedural radiation dose, a high technical success rate, and a low complication rate. In addition, the needle trajectory with the curved-needle technique widely avoids retroperitoneal organs, which may not always be the case with straight-needle TFLP techniques. While we use biplane fluoroscopy, this technique can be performed on single-plane equipment with minimal modification by alternating the image intensifier between the projections. Finally, with the fluoroscopic landmarks described, even very difficult spines can be accessed by a variety of radiologists; for example, 8 radiology residents and 4 neuroradiology fellows successfully performed this technique in the reported cohort, providing evidence of its simplicity and reproducibility.

This case series has several limitations. The sample size is small and, therefore, is underpowered to detect rare complications. The sample size is even smaller when considering the number of cases in which the effective dose could be calculated. Furthermore, the cases in which the effective dose could be calculated were late in the study period, and earlier cases during the development of the technique may have had higher effective doses, particularly given the longer fluoroscopy times early in the study period. Although no patient experienced persistent radicular symptoms, occasionally patients did experience radicular symptoms during passage of the needle through the neural foramen. However, because this immediately resolved in all cases on removal of the needle, it was not always documented in the procedural notes; therefore, the true incidence is not known. The potential for unrecognized motor deficits related to nerve root injury does exist in this population due to baseline deficits related to SMA.
