MR Thermometry during Transcranial MR Imaging–Guided Focused Ultrasound Procedures: A Review

PRF Thermometry

Within the B₀ magnetic field, hydrogen protons in water and fat precess around their axis at their resonant frequencies according to their gyromagnetic ratio. Temperature variations in tissue cause changes in the angular frequency of the proton precession. For hydrogen nuclei, which comprise a single proton, temperature effects result in frequency shifts less than a few 100 Hz at 1.5T, but they remain detectable (for comparison, the resonance frequency of a proton at 1.5T is 63.87 MHz).

The electron cloud of a hydrogen atom intrinsically shields the proton within the nucleus from the surrounding magnetic field. While hydrogen atoms in individual water molecules are strongly linked through covalent bonds to their associated oxygen atoms, they also experience weaker attraction to the oxygen atoms of neighboring water molecules through hydrogen bonding. Hydrogen bonding causes some of the electron clouds of hydrogen to be pulled away by the electrophilic oxygen atom, resulting in deshielding the hydrogen protons. With this deshielding, protons within water molecules experience a stronger local magnetic field. The local magnetic field can be addressed as follows: where T is a temperature, s(T) is the shielding constant of water molecules, χ(T) is the magnetic susceptibility of tissue, B₀ is the strength of the main MR imaging magnetic field, and α is the temperature coefficient of the water proton, approximately 0.01 ppm/°C (the coefficient ranges from −0.00739 to −0.0135 ppm/°C).^17,18

Increasing the temperature of tissue disrupts hydrogen bonding within water molecules, improving the shielding of hydrogen protons. In contrast, in aqueous tissues, the temperature-dependent magnetic susceptibility of tissue χ(T) can be negligible because it is much smaller than effects due to changes in the shielding of hydrogen protons. where ω is the Larmor angular frequency and γ is the gyromagnetic ratio of the hydrogen nuclei (267.522 × 10⁶ rad/s/T). Hydrogen nuclei in water at higher temperatures have lower corresponding resonant frequencies due to decreased hydrogen bonding (Fig 1). PRF thermometry relies on these changes in resonance frequency in hydrogen nuclei within water¹⁷ in response to local changes in tissue temperature. For example, in a 1.5T magnetic field, an increase of 1°C would result in a decrease in the PRF of 0.6387 Hz.¹⁹ Hence, temperature changes result in local resonant frequency variations. The measured temperature change is relative and is based on the assumption that the reference body temperature is 37°C.

• Download figure
• Open in new tab
• Download powerpoint

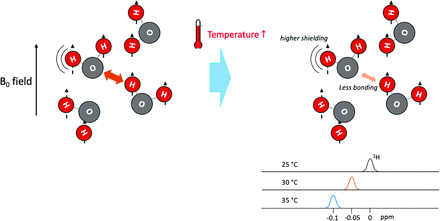

FIG 1.

PRF is dependent on temperature. The B₀ field denotes the direction of the magnetic field and thus the spins of the hydrogen protons (H). An increase in temperature leads to less hydrogen bonding and higher electron shielding of protons, making them less susceptible to the B₀ field and decreasing their resonant frequency.

There are several methods to estimate the temperature using the relationship between water proton frequency and temperature. MRS imaging provides the nuclear magnetic resonance signal spectrum, allowing monitoring the frequency peak of the water proton. On the basis of spectroscopic imaging, the temperature can be estimated by observing the frequency difference between the water proton and the reference, such as the tissue lipid²⁰ or contrast agents.²¹ PRF-based MRS imaging is the sole method capable of measuring absolute temperature with high accuracy (eg, 0.3°C for 1-mL voxels²²). Nevertheless, most MRS techniques are limited in terms of spatial resolution and real-time MR imaging acquisition, which are necessary for rapid temperature monitoring in transcranial MRgFUS applications. The other approach is to use MR phase mapping because changes in the temperature can alter the MR resonance frequency. In phase mapping–based PRF thermometry, temperature-induced local frequency variations can be detected using spoiled gradient recalled-echo (GRE) sequences to acquire phase maps before and during tissue heating. By subtracting the baseline phase images from the subsequent phase images acquired during heating, chemical shift effects that are not temperature-dependent are theoretically removed. Phase differences caused by field deviations within biologic tissues can be used for estimating relative changes in temperature as follows: where ΔT is the temperature difference relative to the reference image, ϕ(T) is the current phase image, ϕ(T₀) is the reference phase image, γ is the gyromagnetic ratio, α is the temperature-sensitive coefficient, B₀ is the main magnetic field, and TE is the echo time. The reference phase image (before heating) is subtracted from the current phase image (during heating). Finally, relative changes in temperature can be calculated.

PRF thermometry allows temperature maps to be acquired in seconds,¹⁵ noting that it has suboptimal performance in adipose tissue, making it less ideal for body applications of HIFU but appropriate for transcranial HIFU. Because HIFU generally creates a focal spot in a prolate ellipsoid shape that is 3–4 mm in diameter and 4–5 mm in height²³ (Fig 2), the PRF sequence resolution must have an in-plane resolution of at least 1–2 mm and a section thickness maximum of 3 mm.²⁴ In general, clinical imaging systems have a temperature precision of approximately 1°–2°C²⁵ and are typically acquired during ablation,²⁶ with the most important image acquired after the sonication peak. Specifically, for the transcranial HIFU Insightec ExAblate Neuro system using a body coil for receive and transmit and a gradient-echo sequence (FOV = 280 mm; frequency = 256; phase = 128; section thickness = 3mm; matrix = 256 × 256), the spatial resolution is 1.09 × 1.09 × 3 mm and the temporal resolution is ∼3.5 seconds per dynamic image with a total acquisition of <1 minute for each sonication. Currently a standard diagnostic head imaging coil cannot be used with the Insightec ExAblate Neuro device. Also, current MRT used for transcranial HIFU with Insightec equipment can only be acquired in 2 dimensions and must be acquired in 1 of 3 orthogonal planes during sonication.

• Download figure
• Open in new tab
• Download powerpoint

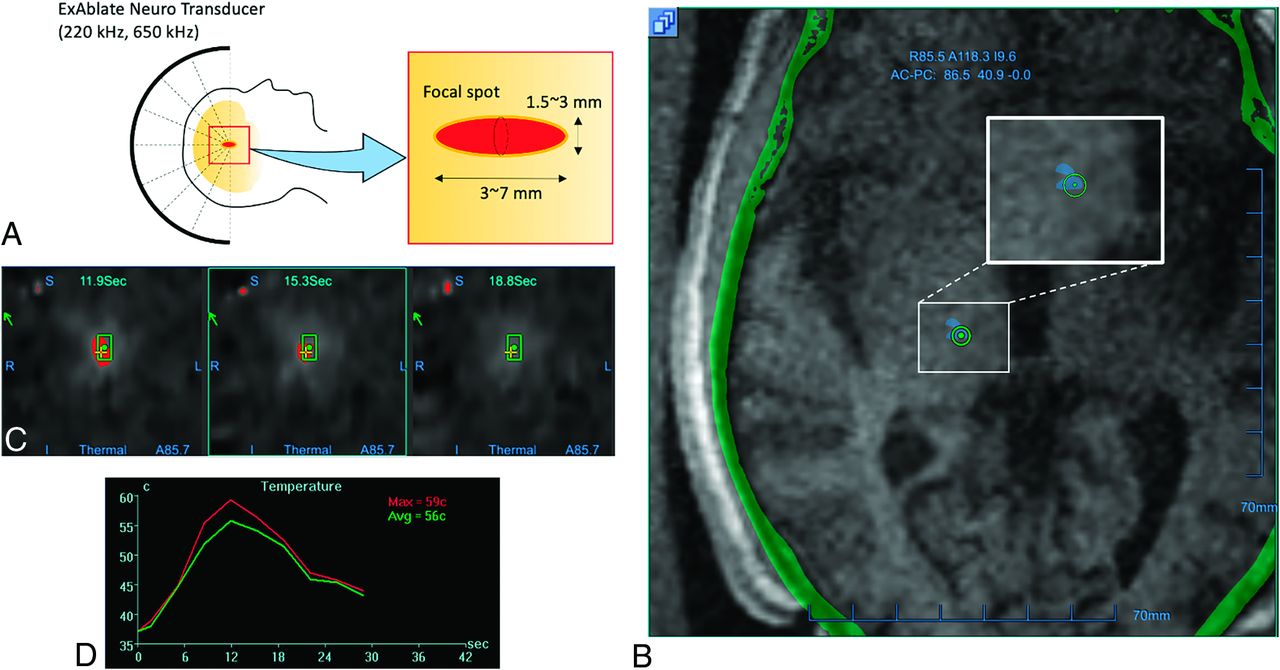

FIG 2.

MR imaging thermometry during transcranial focused ultrasound. A, The focal spot of the ExAblate Neuro transducer takes a prolate ellipsoid shape, measuring approximately 1.5 mm in diameter and 3 mm in length at 650 kHz and approximately 3 mm in diameter and 7 mm in length at 220 kHz. B, The PRF thermal dose map shows an accumulated thermal dose in light blue, which is based on the CEM43 model. The thermal dose map visualizes the amount of heat deposited into the target tissue, allowing clinicians to optimize treatment parameters and positioning while minimizing the risk of normal tissue damage. C, Multiple MRT images are obtained during sonication. In this example, images are acquired at 11.9 seconds (left panel), 15.3 seconds (middle panel), and 18.8 seconds (right panel) after the sonication has begun, generating images of tissue temperature at the focal spot according to a user-determined color scale. The time intervals between images will vary depending on the user-determined settings, such as the addition of presonication baseline phases or changing from multiple- to single-echo thermometry. The duration of the sonication is often set so that peak temperatures are achieved in sync with the MRT acquisition. The alignment of the focal spot to the target is best assessed in the phase-encoding direction. D, After sonication, a temperature graph is generated to show average and maximal temperatures across time within the ROI. Avg indicates average; Max, maximum.

Thermal Dosimetry

Dosimetry models are used to estimate thermal tissue damage during HIFU procedures. When the PRF temperature map is obtained, the cumulative equivalent minutes at 43°C (CEM43) model can be used to estimate a thermal isoeffect dose through the exposure time.^27,28 where R is the factor depending on temperature range: 0.25 (T ≤ 43°C) and 0.5 (T > 43 °C). van Rhoon et al²⁸ reported the challenges in establishing precise thermal thresholds for brain tissue due to the substantial differences in species, data availability, and a lack of such data in humans. However, previous investigations reported that thermal tissue damage can occur in the range of 10 CEM43, and a thermal dose as low as 0.1 CEM43 can result in changes in the BBB permeability, metabolism, CBF, and neural activity.²⁹ Hence, close monitoring and careful control of the thermal dose are especially helpful to ensure the safety and efficacy of transcranial HIFU (Fig 2B). Of note, when performing LIFU for neuromodulation in neuropsychiatric diseases, it is recommended to keep the thermal dose below 0.1 CEM43 to minimize uncontrolled physiologic changes. Thus, depending on the clinical indication and target, thermometry is often not used for LIFU.

Optimization of PRF Thermometry

Trade-Offs.

As in other MR imaging, in PRF thermometry there are trade-offs among spatial resolution, temporal resolution, and SNR. Todd et al²⁴ showed that the spatial resolution needed to capture nonuniform temperature distributions created by HIFU (Fig 3A) is highly dependent on the shape of temperature distribution. Low-resolution imaging was sufficient in accurate measurement of a temperature distribution that changes linearly in space. However, higher spatial resolution is needed when the temperature distribution is nonlinear, which is often the case in HIFU, in which the distribution is based on the shape and size of the focal zone, the heating trajectory, and the ultrasound power and deposition. Their experiments showed that imaging with a spatial resolution of 1.0 × 1.0 × 3.0 mm³ or higher with slices oriented perpendicular to beam path resulted in the best accuracy of temperature measurement. Because the HIFU thermal ablation lesion at the focal zone is elongated in the craniocaudal direction (as a prolate ellipsoid), there is inherently less curvature of the temperature distribution in the direction of the beam, allowing thicker acquisition slices to be used. Thus, PRF thermometry is often acquired in the axial plane because small errors in section prescription on coronal or sagittal imaging may result in missing the hot spot.

• Download figure
• Open in new tab
• Download powerpoint

FIG 3.

Sources of error in MR imaging thermometry. A, Temperature maps during HIFU heating using different spatial resolutions (left to right: 2 × 2 × 3 mm³, 1 × 1 × 3 mm³, 0.1 × 0.1 × 0.1 mm³ simulation). This experiment showed that imaging with a spatial resolution of 1.0 × 1.0 × 3.0 mm³ or higher with slices oriented perpendicular to the beam path resulted in the best accuracy of temperature measurement (figure reproduced from Todd et al²⁴ with permission). B, Temporal SD (std) of PRF temperature maps overlaid on sagittal, coronal, and axial MR images demonstrate errors in temperature measurement due to motion (eg, B₀ field drift, cardiac pulsation, respiratory motion; figure reproduced from Le Ster⁷⁵).

Image SNR

The phase-dependent SNR from these images is proportional to the PRF change as well as the sequence TE.¹⁵ As shown in Equation 2, when the T2* relaxation time of brain tissues is equal to the TE, the optimal SNR can be achieved. To perform MRT that has sensitivity on the order of 0.01 ppm, a high degree of magnetic field homogeneity is required. In standard 2D Cartesian Fourier transform (2DFT) thermometry, when all available time in a TR is used for sampling to maximize the SNR, the result is a long imaging time, which makes the images more sensitive to off-resonance/local frequency change.

Magnetic Field Inhomogeneity

Magnetic field inhomogeneity can be conceptualized in terms of external magnetic flux and local magnetic susceptibility. These sources of error include magnetic field drift and susceptibility changes.^31,32 Magnetic field drift refers to the change in the magnetic field flux due to extrinsic factors such as the flux in the earth’s own magnetic field and gradient system heating that occurs when applying large gradients.³² Magnetic field phase drifts in clinical scanners while scanning have been reported to be from 0.01 to 0.06 ppm/min (or 0.6 × 3.6 ppm/h), which could result in up to approximately 6°C/min of scan time (assuming a PRF coefficient of −0.008 ppm/°C).³³ Depending on the polarity, these field drifts can result in both over- and underestimation.³⁴ Because the drift is small during acquisition, it can be corrected with postprocessing using internal or external references such as aqueous tissue outside the heating zone (as in referenceless thermometry described below) or fat-based tissues (with minimal phase shift due to heat).³⁵

Susceptibility changes due to inhomogeneity in a patient’s tissues can also greatly affect temperature measurement. Briefly, susceptibility is caused by paramagnetic, ferromagnetic, or diamagnetic substances (ie, Ca²⁺) and is particularly noticed at the interface of 2 different substances (eg, between gas and bone).³⁶ Blood flow parameters also greatly affect magnetic inhomogeneity, such as deoxyhemoglobin concentration, blood flow, hematocrit, red blood cell integrity, and vessel orientation. Additionally, other relevant factors that affect homogeneity include molecular diffusion, pH, and prior contrast use.³⁷

Off-Resonance Sensitivity

The multiecho approach is an effective method for mitigating off-resonance sensitivity while maintaining SNR. In early multiecho 2DFT sequences, temperature was estimated by determining the slope of the linear fit of the phase versus TEs.³⁸ While multiecho sequences were of similar scan length to those of single-echo gradient images with long TEs, they allowed less aliasing/phase wrapping (ie, the ability to detect temperature increases of ≥100°C). The multiecho approach compared with the single-echo gradient approach showed less aliasing at sites of bone and fat as well.³⁸ Furthermore, the multiecho images showed less degradation from motion and greater ability to identify areas with multiple spectral components. Newer approaches combining multiple independent temperature estimates can be performed to optimize temperature SNR.^39,40

Electrical Properties

Temperature change in ablated tissue can also lead to change in the electrical properties of the tissue, causing a constant incremental phase shift per unit change in temperature completely independent of the TE.⁴¹ Increasing temperature leads to an increase in electrical conductivity, causing more attenuation in the amplitude of the MR radiofrequency pulses used for imaging acquisition, affecting the phase and ultimately temperature measurement. This typically affects procedures that heat larger tissue volumes like deep regional hyperthermia and is less consequential in ablative procedures like MRgFUS, in which the ablation zone is smaller and much more focused.

Spatial Sampling: Frequency versus Phase-Encoding Direction

Chemical shift artifacts are noted on spin-echo anatomic imaging at the interface between fat and water due to slightly different resonant frequencies of hydrogen nuclei within lipid and water (because there is no deshielding of the hydrogen nuclei in lipid). These cause a spatial misregistration of the fat and water molecules in the frequency-encoding direction. For standard gradient-echo sequences and PRF thermometry, the sensitivity of these distortions is larger in the frequency-encoding than in the phase-encoding direction.⁴² This phenomenon should be considered when performing geometric adjustments in the ExAblate Neuro system. If a focal spot is generated with an offset between the current and planned spot location, the system allows electronic adjustments to the focal spot. In this process, the frequency direction can be ignored because MR images may display shifted geometric information, making it unnecessary to consider the frequency-encoding direction during the adjustment procedure. Thus, intraoperative thermal measurements only in the phase-encoding direction are recommended (Fig 2C).

Motion Sensitivity

Current clinical MRT sequences typically use a single baseline to reconstruct temperature maps so that a single preheating acquisition is subtracted from a postheating acquisition. This feature has been shown to work well in phantoms and stationery tissues but is susceptible to substantial artifacts when motion occurs. Currently, the Insightec ExAblate Neuro system performs a motion-detection scan in which areas of high contrast (eg, interface between pia mater/ependyma and CSF) are monitored during treatment. If motion is detected, sonication is aborted.

Motion leads to phase errors in the PRF calculation in various ways (Fig 3B). First, voxel-by-voxel phase subtraction results in a significant temperature error if there is image misregistration. Second, susceptibility changes of the magnetic field result in an additional phase value in the PRF calculation. Third, organ movement during MR image acquisition generates blurring and ghost artifacts, which may cause temperature bias or uncertainty, even if those artifacts may not directly affect PRF temperature maps. While more important in body clinical applications of HIFU due to the presence of respiratory motion, cardiac motion, and gut peristalsis, motion also degrades intracranial MRT, especially when considering that thermal ablative lesions in the thalamus require submillimetric precision to avoid complications. Head motion, brain pulsation (due to the effect of the cardiac cycle on cerebral perfusion⁴³ and CSF flow⁴⁴), and facial motion (of the eyelids, tongue, pharynx, or jaw)^25,45 can all lead to aliasing artifacts and reduced SNR in single baseline imaging.

There are multiple additional methods to acquire thermometry, avoiding single baseline artifacts due to periodic and nonperiodic motion, including multibaseline subtraction^46⇓-48 and referenceless^49⇓-51 and hybrid multibaseline/referenceless thermometry.⁵² In multibaseline subtraction, a whole set of baseline images before heating is acquired over the entire respiratory and/or cardiac cycle to create a library. After heating, either the best baseline image of the library or an averaged composite image is used for baseline subtraction^46,53 In referenceless reconstruction, the baseline image is not used, but instead the temperature increase in every image is used. This is performed by estimating the background phase outside the heated region by fitting an equation/polynomial to the phase (ie, phase-regression analysis). This polynomial is then extrapolated to the location of heating, and a phase is estimated, which replaces the traditional baseline phase when calculated for phase shift and temperature. With this technique, there is a complete elimination of misregistration of images with the baseline data due to frame-to-frame motion.⁵⁰ However, the background phase at tissue interfaces requires larger polynomial orders to fit in referenceless reconstruction, potentially increasing the risk of underestimating the thermal dose.

In intracranial applications of MRgFUS, it is important to have whole-brain coverage, because it is important for monitoring potential heating of tissue in the near and far field of the ultrasound beam. However, it is difficult to apply a low-order polynomial to the whole brain, especially in the frontal region and structures at the base of the brain that are adjacent to air-filled sinuses and nasal cavities.²⁵ A hybrid reconstruction combining both multibaseline and referenceless acquisitions was described in detail by Grissom et al⁵² and is reported to be more robust to both motion-related artifacts and varying anatomic configurations in moving organs (liver and heart).

Rieke et al²⁵ compared absolute temperature error and temporal temperature uncertainty of different reconstruction techniques: single baseline subtraction, multibaseline subtraction (with 30 library images), hybrid single baseline/referenceless reconstruction, and hybrid multibaseline/referenceless reconstruction. In patients undergoing transcranial MRgFUS, hybrid reconstruction yielded only approximately 5% of pixels with >1°C of error. Hybrid multibaseline/referenceless reconstruction showed little improvement compared with multibaseline subtraction in the cases in which volunteers were instructed to be as still as possible; however, it substantially outperformed traditional multibaseline reconstruction when nonrepetitive motion was present (tongue or jaw motion). While hybrid multibaseline/referenceless reconstruction achieves the best results, it requires a longer time to acquire. A hybrid single-baseline/referenceless reconstruction can substantially reduce temperature errors and is adequate for measuring temperature within the central brain for the currently FDA-approved indications for transcranial MRgFUS (essential tremor and Parkinson disease), targeting nuclei within the thalamus and globus pallidus.

Recent technical developments for motion-robust MRT have been proposed, such as principal component analysis,⁵⁴ background field removal methods,⁵⁵ motion correction using machine learning,⁵⁶ and k-space-based methods.⁵⁷ However, most techniques have inherent trade-offs among spatial coverage, computational costs, and the accuracy of temperature measurement.

Coil Use

During transcranial MRgFUS, ultrasound hardware surrounds the head, occupying the space typically occupied by an MR imaging head coil during diagnostic imaging. Therefore, large-diameter coils such as a body coil are used for MRT acquisition currently, but these yield markedly lower SNR. Body coils are single-channel; therefore, techniques that use multiple receiver channels such as parallel imaging cannot be currently used.⁵⁸ Recently, a 2-channel receive-only head coil was designed specifically for use in conjunction with the ExAblate Neuro system and is being offered by Insightec to be used with 3T scanners.⁵⁹ Unlike a standard head coil, this coil is made integral with the membranes used in the Insightec machine and is disposable. As reported, the head coil improved the SNR on T2-weighted images compared with the volume body coil by 3–4 times. A higher SNR may have the potential to provide better treatment-planning, more precise temperature measurements, and ultimately better clinical results. Development of MRgFUS-compatible coil arrays that allow parallel imaging is a burgeoning area of research, because the currently developed MRgFUS coil arrays still have fewer coils than those used in conventional anatomic or functional parallel imaging (11 versus 32).⁶⁰

Large-Brain-Volume MRT

Typically, PRF MRT is acquired using a spoiled GRE sequence in which temperature-induced local frequency variations lead to phase changes in the MR signal. As previously mentioned, the temperature sensitivity is maximized when the TE is the same as or closest to the T2* relaxation time within tissues. This required TE naturally leads to a longer TR in the GRE sequence, leading to extended total acquisition times and increased susceptibility to motion. Hence, acceleration strategies should be considered to improve the temporal resolution when measuring temperature over a large brain volume.

The Insightec ExAblate Neuro system offers 2 options for image acquisition: a single-section acquisition using a 2DFT GRE sequence or multisection acquisition (typically 3–5 slices) using EPI. While EPI can cover multiple slices, it is often associated with a lower SNR and susceptibility artifacts, which can cause spatial shifts in the resulting images. Other acceleration approaches include spiral and radial readout trajectories, as well as compressed sensing.^61⇓-63 Recently, there has been growing interest in using accelerated imaging techniques to measure temperature over a large brain volume.⁶⁴

Future Considerations

MR Imaging Assessment of Treatment Outcomes

After MRgFUS treatment, the criterion standard assessment of the ablation zone is to measure nonperfused volume (NPV) using gadolinium-based contrast-enhanced MR imaging. After gadolinium injection, the region without enhancement characterizes the NPV, which is associated with the coagulated tissue.^67,68 However, intraprocedural postcontrast NPV assessment is generally not performed due to safety concerns regarding heating of the contrast as well as potential errors of MRT.^69⇓-71 In clinical practice, DWI is obtained postprocedurally to estimate the ablation zone.

Alternatively, the cumulative thermal dose can offer important information for tissue response in HIFU treatment. In MRgFUS treatments for essential tremor, Huang et al⁷² demonstrated that an accumulated thermal dose in the range of 17–240 CEM43 is highly correlated with lesion size measured by T1- and T2-weighted MR images. This finding may suggest that the cumulative thermal dose can help clinicians determine treatment end points in the procedure.

Multiple additional MR imaging methods are being developed and evaluated to detect treatment effects after MRgFUS, including T1/T2 mapping, magnetization transfer ratio, amide proton transfer, and MR elastography.^70,73,74 A combination of emerging multiparametric MR imaging techniques may be needed to obtain a more comprehensive evaluation of tissue-level changes during and after MRgFUS.
