Abstract
BACKGROUND AND PURPOSE: Determination of hemispheric language dominance is critical for planning epilepsy surgery. We assess the usefulness of spatiotemporal source analysis of magnetoencephalography for determining language laterality.
MATERIALS AND METHODS: Thirty-five patients with epilepsy were studied. The patients performed a semantic word-processing task during MEG recording. Epochs containing language-related neuromagnetic activity were averaged after preprocessing. The averaged data between 250 and 550 ms after stimulus were analyzed by using dynamic statistical parametric mapping. ROIs were obtained in the opercular and triangular parts of the inferior frontal gyrus, superior temporal gyrus, and supramarginal gyrus in both hemispheres. We calculated laterality indices according to 1) dSPM-amplitude method, based on the amplitude of activation in the ROIs, and 2) dSPM-counting method, based on the number of unit dipoles with activation over a threshold in the ROIs. The threshold was determined as half of the maximum value in all ROIs for each patient. A LI ≥0.10 or ≤−0.10 was considered left- or right-hemisphere dominance, respectively; a LI between −0.10 and 0.10 was considered bilateral. All patients underwent an intracarotid amobarbital procedure as part of presurgical evaluation.
RESULTS: The dSPM-counting method demonstrated laterality consistent with the IAP in 32 of 35 patients (91.4%), the remaining 3 (8.6%) demonstrated bilateral language representation, whereas the dSPM-amplitude method showed 18 (51.4%) concordant and 17 (48.6%) bilateral. No laterality opposite to the IAP was found.
CONCLUSIONS: Spatiotemporal mapping of language lateralization with the dSPM-counting method may reduce the necessity for an IAP in as many as 90% of patients.
ABBREVIATIONS:
- dSPM
- dynamic statistical parametric mapping
- IAP
- intracarotid amobarbital procedure
- LI
- laterality index
- MEG
- magnetoencephalography
- MPRAGE
- magnetization-prepared rapid acquisition of gradient echo
Determination of hemispheric language dominance (language lateralization) is critical for planning epilepsy surgery. Traditionally, the IAP, also known as the Wada test, is the standard technique used to determine language laterality. It is invasive, requiring the injection of amobarbital (or methohexital) into the internal carotid arteries, and carries a risk of stroke and other complications.1⇓–3 MEG, a noninvasive neuroimaging procedure, is an established method for language lateralization.4⇓⇓–7 MEG detects neural activity with high spatial and temporal resolution when it is recorded in a subject performing language tasks. Previous studies have reported concordance between the IAP and MEG lateralization in presurgical patients with epilepsy, showing positive predictive values of 83%–91%.8,9
In these studies, MEG data were analyzed by using a conventional single dipole model.4⇓–6 This model may be unfavorable in some conditions, especially when the brain activation involves a large region of a neural network.10,11 Several studies have reported that the lateralization metrics based on MEG are highly dependent on the dipole selection criteria, and sensitivity ranges from 71% to 98%.8,9 Determination of these criteria may require specialized skill and experience. Spatiotemporally distributed source models, such as minimum norm estimates and dSPM, provide good source localization over extended sources.12,13 These estimate the current of unit dipoles distributed in the numerous cortical patches, creating dynamic activation maps on the cortex. A few studies have applied spatiotemporal source models to analyzing the language-related MEG data.14,15 However, the clinical usefulness of an anatomically constrained dSPM remains unclear.
The purpose of this study was to assess the usefulness of a spatiotemporal source analysis of MEG data for determining language laterality in patients with medically refractory epilepsy. From a practical perspective, we sought semiautomated procedures without the need for subjective interactions such as manually identifying MEG sources, sensors, and signals. We calculated the LI in 2 different ways based on dSPM, and compared these with the laterality obtained from the IAP.
Materials and Methods
Patients
We studied 35 patients (16 female, 19 male; mean age, 24.0 years; Table) with intractable epilepsy undergoing presurgical evaluation. MEG was performed as a part of this clinical evaluation, and we analyzed all data retrospectively. Three patients (patients 33–35) showed right-hemisphere language dominance in the IAP, and the rest showed left-hemisphere dominance.
Patient profile and laterality indices
Control Group
We studied a control group to validate the capability of language lateralization by using the procedure performed in the patients. The control group consisted of 25 healthy, right-handed subjects (7 male, 18 female; mean age, 24.2 years). The study was approved by the Massachusetts General Hospital institutional review board.
Data Acquisition
MEG was recorded with a 306-channel (204 planar gradiometers and 102 magnetometers), whole-head MEG system in a magnetically shielded chamber. The sampling rate was 1 kHz (patients 1–9) or 600 Hz (patients 10–35). Data were bandpass filtered between 0.1 and 200 Hz. For the source analysis, the data were further low-pass filtered with a cutoff frequency of 40 Hz. In all patients, high-resolution 3T anatomic MR imaging data were acquired with magnetization-prepared rapid acquisition of gradient echo (TE = 3.37 ms; TR = 2000 ms; voxel size = 1 × 1 × 1 mm).
Stimuli and Tasks
During the MEG recording, patients performed a semantic decision task in which 160 English nouns were presented visually. They were asked to decide whether each word was abstract (eg, “freedom”) or concrete (eg, “apple”) and to press different buttons depending on their decision (Fig 1A). Each word was presented for 1000 ms, and the interstimulus interval was 2000 ms. Total recording time was 8 minutes for each patient.

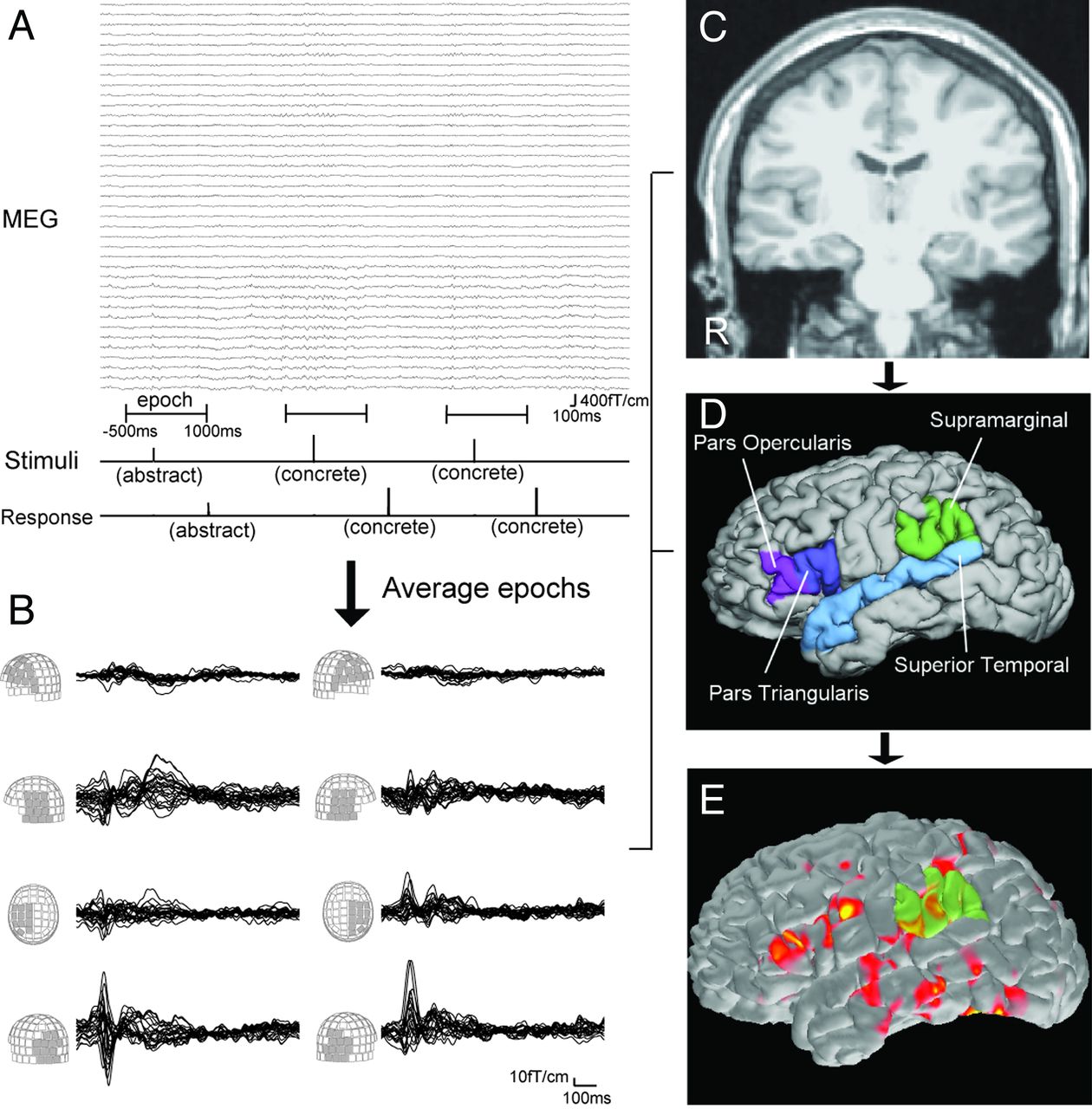

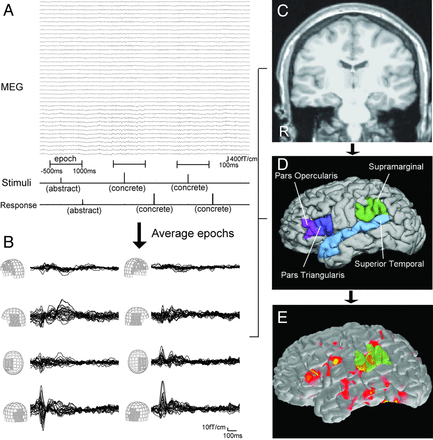

A, Schematic representation of language MEG processing. Stimuli are visually presented as “abstract” or “concrete” words (Stimuli line). Patient responses are also recorded (Response line). Using stimuli as a trigger, epochs from −500 ms to 1000 ms are averaged. B, Waveforms of the averaged MEG from 0 ms to 1000 ms. Waveforms of each MEG sensor group are superimposed. Language activation is seen around 250–550 ms in the frontal, temporal, and parietal sensors. MPRAGE MR imaging (C) provides the cortical surface of each patient by reconstruction processing. This procedure also gives anatomic parcellation of the cortex (D). Four ROIs per each hemisphere are used for calculating LI. E, Spatiotemporal source distribution of the language MEG is mapped on the cortical surface by using dSPM. The value of activation in ROIs is extracted from dSPM.
Preprocessing
Each patient's cortical surface was reconstructed from the MPRAGE MR imaging data, and anatomic parcellation of the cortical areas was obtained by using FreeSurfer (http://surfer.nmr.mgh.harvard.edu)16,17 (Fig 1C, -D). For MEG data, epochs with a time window of 500 ms before stimulus and 1000 ms after stimulus were collected (Fig 1A). Each epoch was examined visually for artifact rejection. The MEG data containing adequate epochs were processed with a temporally extended signal space separation method for further reduction of artifacts.18,19 After the preprocessing, these epochs were averaged for each patient. Thus, the averaged MEG data contain neuromagnetic fields evoked by repetitive language stimuli (Fig 1B). The source activity was then estimated based on the averaged data (Fig 1E).
Source Analysis
Spatiotemporal source distribution was calculated by using dSPM.13 In this method, an anatomically constrained linear estimation approach was applied, assuming the sources are distributed on the cortical surface.20 The forward solution, which models the signal pattern generated by a unit dipole at each location on the cortical surface, was calculated by using a single-layer boundary elemental method.21,22 The surface was tessellated with 5120 triangles; adequate numeric accuracy was provided by using FreeSurfer.16,17,23⇓⇓–26 The activation at each vertex of the cortical surface was mapped by using a noise-normalized minimum norm estimate.12,20 Thus, the spatiotemporal source distribution maps were obtained at each time point (Fig 1E). We evaluated the maps within a time window of 250–550 ms.
Laterality Index
LI was calculated by 2 different methods with the use of dSPM based on the source distribution in several ROIs. The Wernicke and Broca areas are important for representing receptive and expressive language function, whereas various other regions, such as dorsolateral prefrontal cortex and primary motor cortex, participate in language processing.27,28 Presurgical evaluation usually requires mapping of the essential language areas and not just the participating areas. We selected ROIs based on a priori knowledge of the language network,14,15 including opercular and triangular parts of the inferior frontal gyrus, superior temporal gyrus, and supramarginal gyrus in both hemispheres (Fig 1D). These cortical areas were created by an automated cortical parcellation algorithm by using FreeSurfer and were visually inspected to avoid erroneous surface reconstruction. LI values range from −1.00 to 1.00, and a LI ≥0.10 or ≤−0.10 was considered left- or right-hemisphere dominance, respectively; a LI between −0.10 and 0.10 was considered bilateral.
dSPM Amplitude Method
We averaged source waveforms within each region of interest. The sum of amplitude in a time window of 250–550 ms was obtained for all ROIs. LI-amplitude was defined as (L − R)/(L + R), where L and R represent the amplitudes in left- and right-hemisphere ROIs, respectively (Fig 2A).

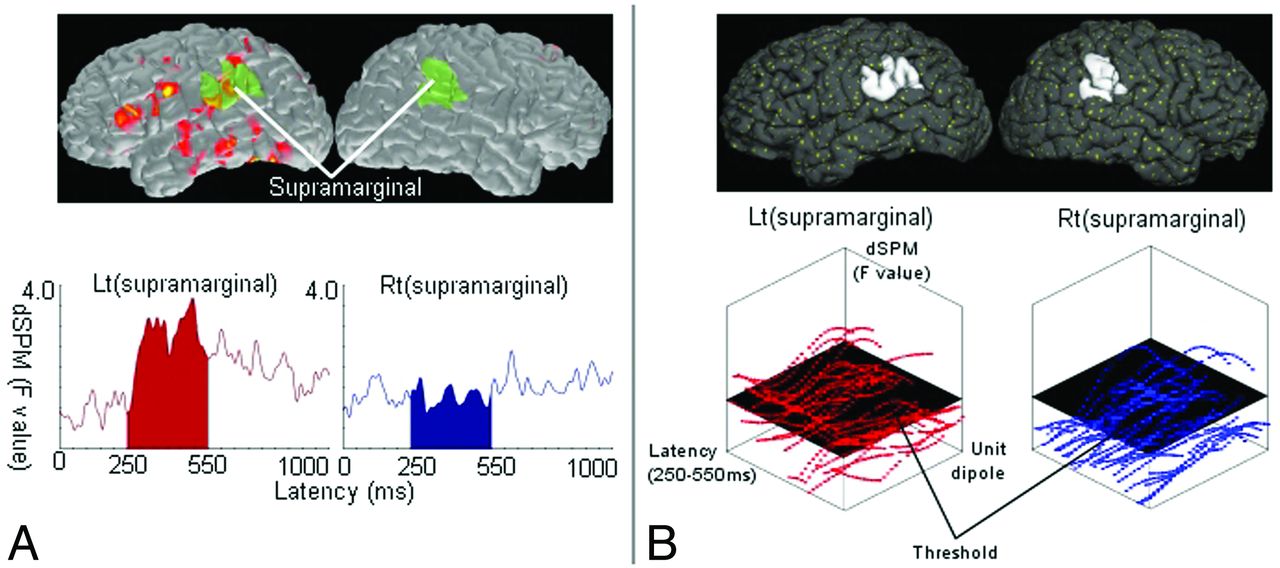

Schematic representation for calculating the LI. LI is calculated by the formula (L − R)/(L + R), where L and R represent parameters obtained from the source distribution within a time window of 250–550 ms in the left and right ROIs, respectively. A, dSPM-amplitude method. The source waveform averaged in each region of interest is extracted from dSPM. L and R are the sum of these waveforms in left and right ROIs. The figure shows an example of processing in a pair of ROIs (supramarginal gyri). The dSPM (top) provides source waveforms averaged within the left and right supramarginal gyrus (bottom). B, dSPM-counting method. In dSPM, each unit dipole (top; yellow dots) has a value of activation. Within each region of interest (eg, the left and right supramarginal gyrus; top), the values of numerous unit dipoles are obtained at each time point (bottom). The number of unit dipoles with a value over a threshold is counted. L and R are the total number of unit dipoles counted in left and right ROIs.
dSPM Counting Method
In each ROI, we counted the number of unit dipoles the activation of which exceeded a threshold in the time window of 250–550 ms. The threshold was determined as half of the maximum value over all ROIs. LI-counting was defined as (L − R)/(L + R), where L and R represent the total number of unit dipoles counted in left- and right-hemisphere ROIs, respectively (Fig 2B).
Results
Table 1 provides an overview of the results for all patients. With the dSPM-amplitude method, 18 of 35 (51.4%) patients showed language representation consistent with IAP results. Seventeen patients (48.6%) had bilateral representation. In the dSPM-counting method, 32 (91.4%) were concordant and 3 (8.6%) were bilateral. LI-counting was more consistent with IAP lateralization than LI-amplitude. We estimated the concordance between the lateralization results of MEG and the IAP regarding the laterality in the epileptogenic hemisphere.8 In LI-amplitude, the sensitivity, specificity, positive predictive value, and negative predictive value were 100%, 53%, 69%, and 100% when bilateral representation was classified into the positive group for both hemispheres. In LI-counting, these values were 100%, 94%, 95%, and 100%.
In the control group, LI-amplitude showed left-sided language predominance in 11 of 25 (44.0%) subjects. Fourteen (56.0%) were bilateral. In LI-counting, 23 of 25 (92.0%) were left, and 2 (8.0%) were bilateral.
Discussion
In this study, we introduced 2 procedures for language lateralization by using spatiotemporal source analysis of MEG, and we compared the results by using an IAP. Our results demonstrated that the language laterality estimated by using the dSPM-counting method had a good concordance with the IAP.
Our procedure included a semantic decision task for language MEG acquisition. A semantic task has been performed in prior studies.7,15 Binder et al29 reported that the semantic task strongly activated the language network of the brain with fMRI. LI-counting in our control group showed a high proportion of left predominance, consistent with a previous report30 suggesting that the task paradigm is appropriate for language lateralization.
Several studies have shown a good concordance of language laterality between MEG and the IAP by using a single dipole model.8,9 These studies used optimized dipole selection criteria6,8,9 and optimized sensor selection4,8,31,32 for calculating dipoles adequately demonstrating language-related activity. Although highly accurate, this process is rather time consuming and requires significant skill. Several researchers have demonstrated that the optimization may be important for determining laterality by MEG.33 In theory, dSPM can represent all the magnetic fields by applying a distributed source model.13,20 Therefore, dSPM analysis does not have a concept of the selection criteria of the adequate sources. In addition, source waveforms, or values of activation, can easily be extracted from any cortical regions of interest on dSPM based on cortical parcellation. Our LI calculation procedures do not need manual signal selection at a sensor level. By using an objective process in the whole procedure, dSPM may be a convenient method to obtain the language laterality.
LI-amplitude tended to show bilateral representation more than LI-counting, though no patients showed laterality opposite to the IAP. This tendency was also observed in the control group. The dSPM-amplitude method reflects mainly the strength of the language-related neuromagnetic activity. Bilateral representation suggests that the language task activated cortices in both hemispheres. The dSPM-counting method, however, was more concordant with the IAP than the dSPM-amplitude method. It represents the size of activated cortex during the language processing. Thus, these LIs may provide different lateralization results because they reflect different aspects of language-related neuromagnetic activities. Our findings suggest that language lateralization may be more correlated with the size of the activated cortex than with the strength of activation. Previous MEG studies have demonstrated language laterality by counting the number of strong single-current equivalent dipoles,8,32,34 whereas other studies observed bilateral activation associated with language function.15,35 None of these studies, however, compared the counting- and amplitude-based methods directly in the same mapping procedure. Language fMRI studies often calculate LIs based on the number of activated voxels over a threshold,36,37 but Suarez et al38 have reported that the threshold-dependent approach may demonstrate unfavorable lateralization results. Pang et al39 have compared MEG and fMRI lateralization by using a voxel-counting procedure and demonstrated concordance. Direct comparison between the laterality determined by the size of activated cortex and activation amplitude in the same mapping procedure of both MEG and fMRI would be necessary to determine which approach contributes more to the language lateralization.
Although LI-counting showed high concordance of laterality with the IAP, 3 discordant cases were observed. Patient movement or dental hardware metallic artifacts contaminated the MEG of these patients during visual inspection. Our MEG preprocessing consisted of 2 steps that used manual artifact rejection and signal space separation; lateralization, however, may be difficult in cases such as these with excessive artifacts. In addition, Doss et al34 described fundamental reasons for discordance; MEG is a brain activation paradigm, whereas the IAP suppresses brain activity, and the tasks in these 2 procedures are often very different.
In the dSPM-counting method, we used a threshold determined by half of the maximum value of activation in the ROIs. The best procedure for obtaining an appropriate threshold in dSPM has not been determined.11 Investigating the statistical distribution of activation values may be useful for resolving this issue.
Our dSPM procedure uses automated cortical reconstruction and parcellation. Surface-based cortical analysis based on this technique demonstrates structural abnormality of cortical thickness and blurred gray-white matter boundaries.40 Therefore, any cortical lesions could theoretically affect the surface reconstruction and source distribution, though there were no gross changes. Further investigation will be necessary to estimate the effect of cortical lesions on the source estimates.
The small number of patients with right-sided language laterality in the IAP is a limitation of this study. Further studies that include more patients with right-dominant and bilateral language representation in the IAP will reduce any selection bias. In this study, our MEG protocol requires only an 8-minute recording session for language lateralization. Including this noninvasive language evaluation in the presurgical work-up would be beneficial and might provide an opportunity to skip an IAP in 90% of patients.
Conclusions
Our results suggest that spatiotemporal source analysis of language-related MEG is a rapid, noninvasive, objective method for determining language laterality. Compared with the LI-amplitude method, LI-counting is more concordant with the IAP, indicating that IAP results have more correlation with the size of activated cortex during language processing than with the strength of activation. Spatiotemporal mapping of language lateralization with the dSPM-counting method may reduce the necessity for an IAP in as many as 90% of patients.
